Sale price$1,150.00
Oil Filter Relocation Oil Cooler Kit: 12024413 - BNR32 Skyline GT-R (RB26) - 13row (Pos: LF Bumper) Block-Filter 3/4-16UNF

Oil Filter Relocation Oil Cooler Kit

GReddy Oil Filter Relocation Oil Cooler Kits - includes remote Type I thermo. and engine block: Type B or Type F, to allow for a remote oil filter mounting position along with bolt-on engine oil cooler kit with all necessary hardware: GReddy inner fin core, lines fittings and mounting.

12024412 - BNR32 Skyline GT-R (RB26) - 10row (Pos: LF Bumper)  Block-Filter 3/4-16UNF
12024413 - BNR32 Skyline GT-R (RB26) - 13row (Pos: LF Bumper)  Block-Filter 3/4-16UNF
12024420 - BCNR33 Skyline GT-R (RB26) - 10row (Pos: In front of Rad. R Strut)  Block-Filter 3/4-16UNF
12024421 - BCNR33 Skyline GT-R (RB26) - 13row (Pos: LF Bumper)  Block-Filter 3/4-16UNF
12024422 - BCNR33 Skyline GT-R (RB26) - 16row (Pos: RF Bumper)  Block-Filter 3/4-16UNF
12024431 - BNR34 Skyline GT-R (RB26) - 13row (Pos: LF Bumper)  Block-Filter 3/4-16UNF
12024432 - BNR34 Skyline GT-R (RB26) - Circuit Spec 13row (Pos: LF Bumper)  Block-Filter 3/4-16UNF
12024418 - ECR33 Skyline (RB25) - 13row (Pos: In front of Rad. R)  Block-Filter 3/4-16UNF
12024405 - RPS13 180SX (SR20) - 13row (Pos: Right Front Bumper)  Block-Filter 3/4-16UNF
12024403 - PS13 Silvia (SR20) - 13row (Pos: In front of Rad. R)  Block-Filter 3/4-16UNF
12024407 - S14/S15 Silvia (SR20) - 13row (Pos: In front of Rad. )  Block M20xP1.5/Filter 3/4-16UNF
12024408 - S14/S15 Silvia (SR20) - 16row (Pos: In front of Rad. R)  Block M20xP1.5/Filter 3/4-16UNF
12014410 - AE86 Corolla (4A-G) - 13row (Pos: In front of Rad. L Strut)  Block-Filter 3/4-16UNF
12014405 - JZA80 Supra (2JZ) - 16row (Pos: In Front of Rad. by AirCon)  Block-Filter 3/4-16UNF
12014415 - JZS161 Aristo (2JZ) - 13row (Pos: In front of Rad. Trans L)  Block-Filter 3/4-16UNF
12014416 - JZX100 Mark II (1JZ) - 13row (Pos: OEM pos. by AirCon)  Block-Filter 3/4-16UNF
12014408 - JZX90 Mark II (1JZ) - 13row (Pos: In Front of Rad. by AirCon)  Block-Filter 3/4-16UNF
12054401 - AP1 S2000 Turbo Kit (F20C) - 13row (Pos: In front of Rad.)  Block M20xP1.5/Filter 3/4-16UNF

When the engine oil temperature is very severe after continuous laps on the circuit, it is essential to install an oil cooler.

The GReddy Oil Filter Relocation Oil Cooler Kit(s) help maintain a stable temperature within the engine during sports driving, preventing adverse effects on lubrication and cooling functions. This results in improved performance and prevents engine damage due to high heat dissipation and low pressure drop. And by relocating the position of the oil filter element, maintenance and accessibility is improved.

  • By using a large-capacity core with offset fins in the core tube, this ideal oil cooler has succeeded in increasing heat dissipation and reducing pressure loss.
  • A type of kit that is attached to a car that does not have clearance near the oil filter.
  • By moving the element, it is easier to replace the oil filter and improve maintainability.



Product Specifications

  • Engine oil cooler with GReddy 10, 13 or 16 row inner fin cores

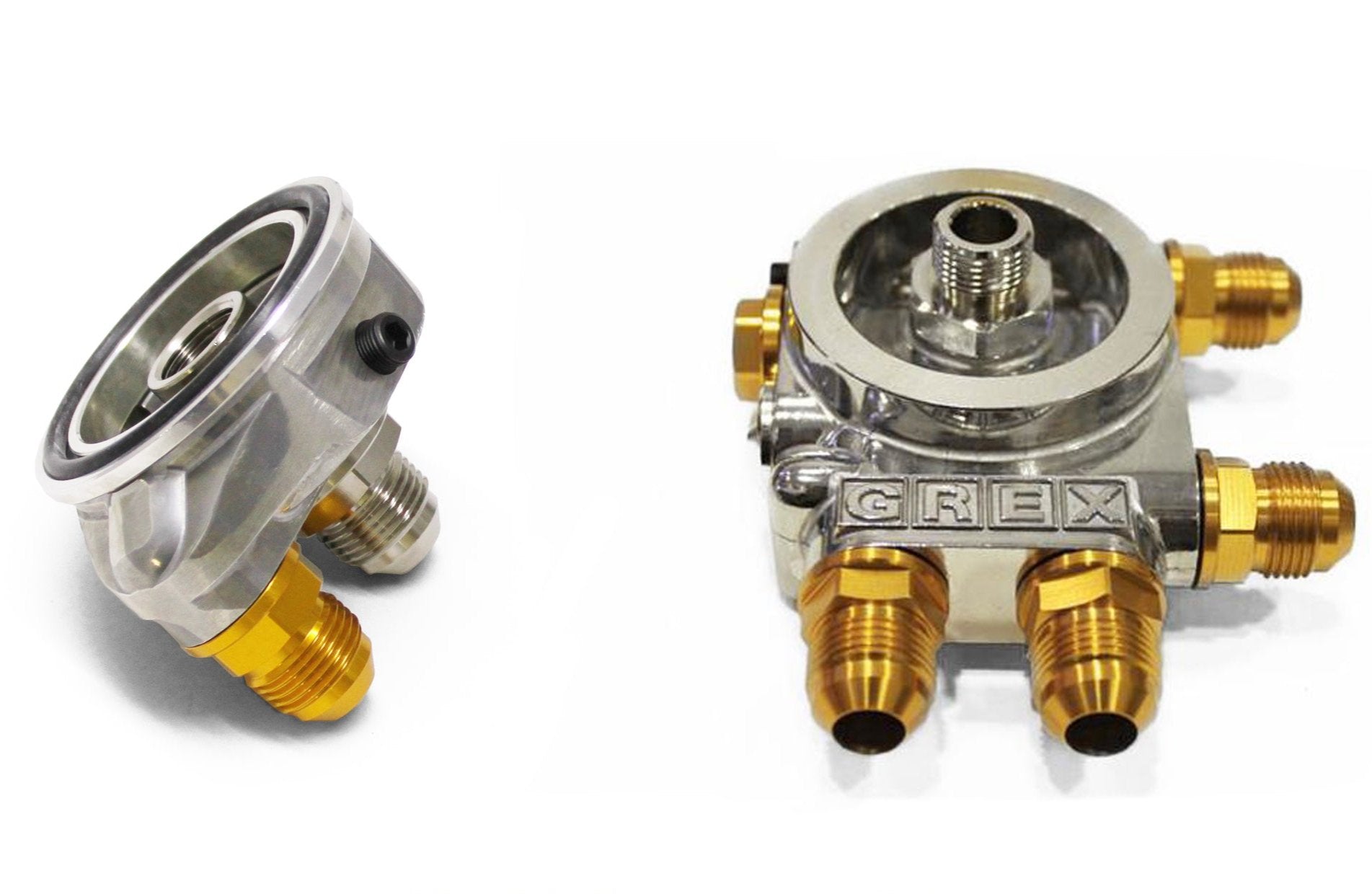

  • Type I and Type B or F thermostatic oil blocks for remote oil filter relocation
  •  (opening range 75o-82oC)


Remarks

  • For 3/4-16UNF or M20xP1.5 center-bolts
  • GReddy oil cooler sensor terminal (code: 12401178) included (1/8PT meter sensor can be installed)
