Replacement GReddy (TD / T) Turbo Flanges
GReddy MHI turbo specific actuator or external wastegate turbine housing Inlet and Outlet Flanges

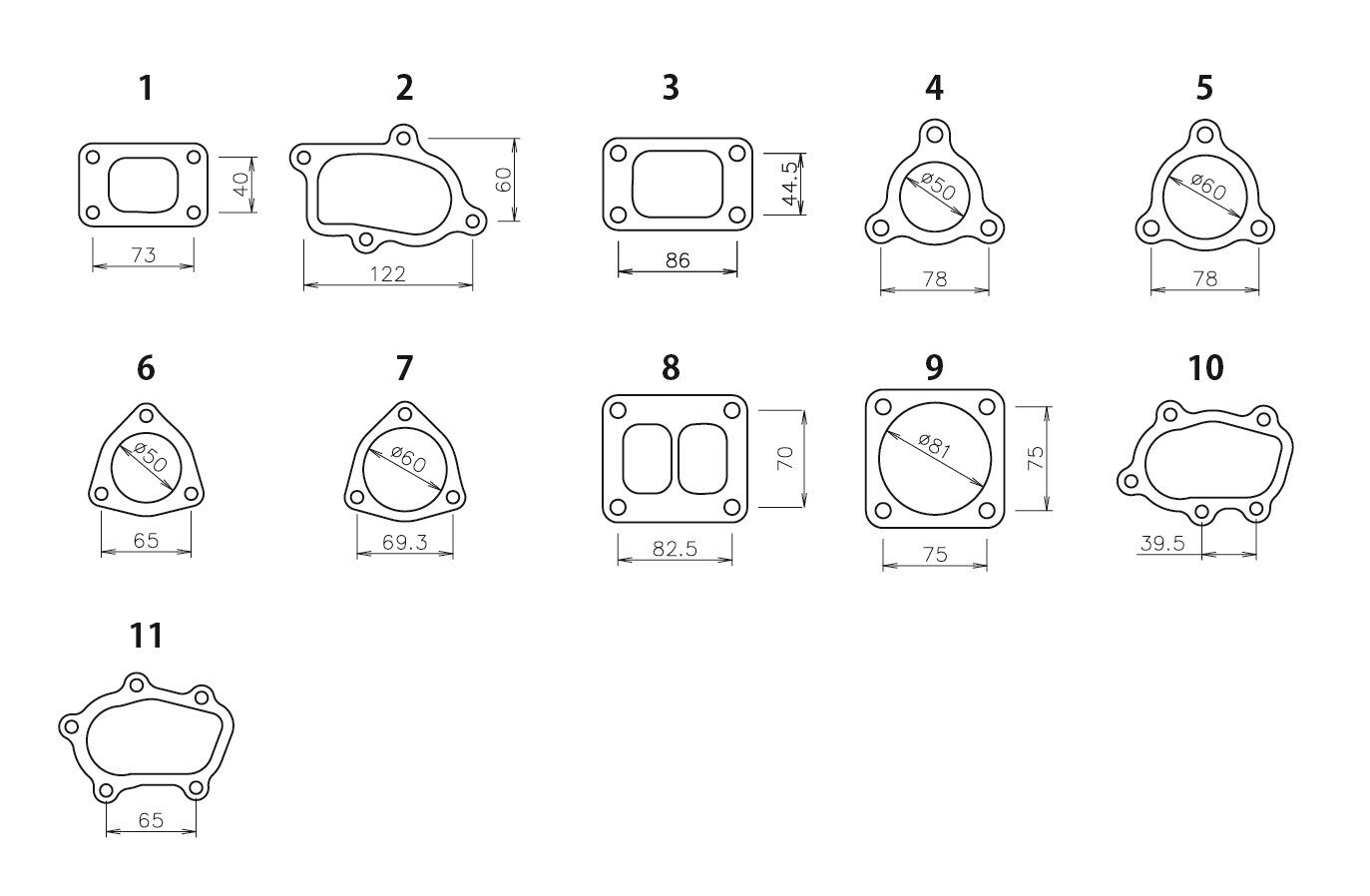

GReddy Turbo Flange Reference Guide
|
Turbine Housing |
Wastegate Type |
In/Out |
Dimensions |
P/N |
Remarks |
|
TD-04H |
Actuator |
Inlet |
1 |
||
|
Outlet |
2 |
||||
|
TD-05SH |
Actuator |
Inlet |
3 |
||
|
M10 P1.25 tapped |
|||||
|
Outlet |
4 |
||||
|
External |
Inlet |
6 |
|||
|
M8 P1.25 tapped |
|||||
|
Outlet |
6 |
||||
|
TD-06S |
Actuator |
Inlet |
3 |
||
|
M10 P1.25 tapped |
|||||
|
Outlet |
5 |
||||
|
TD-06S TD-06S L2 TD-06SH(8/10㎠) T67(8/10/12㎠) |
External |
Inlet |
6 |
||
|
M8 P1.25 tapped |
|||||
|
Outlet |
7 |
||||
|
TD-06SH(16㎠) |
External |
Inlet |
3 |
||
|
M10 P1.25 tapped |
|||||
|
Outlet |
5 |
||||
|
TD-07S T78 T88 T88H |
External |
Inlet |
8 |
||
|
M10 P1.25 tapped |
|||||
|
Outlet |
9 |
For square flange type (94φ coupling type not available) |
|||
|
TZ |
Actuator |
Inlet |
1 |
T517Z T518Z T620Z |
|
|
TZ |
Actuator |
Outlet |
10 |
N/A |
ZN6/ZC6 S14/15 JZX100 |
|
TZ |
Actuator |
Outlet |
11 |
N/A |
BNR32 BCNR33 BNR34 |
|
T78 |
External |
Outlet |
|

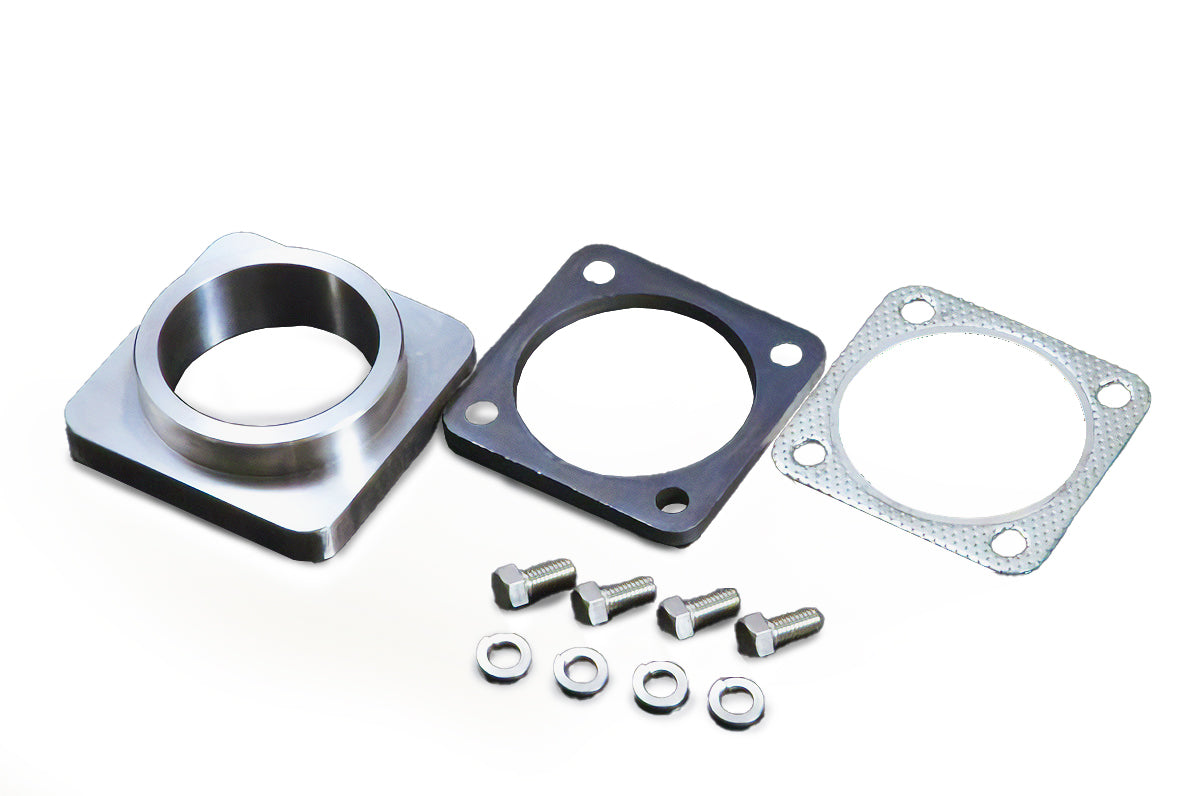

Square Flanges, gaskets and nuts and bolt Set |
|
|
T78 |
External |
Outlet |
|
94mm V-band Set |
|
|
T88 |
External |
Outlet |
|
94mm V-band Set |
|
|
T88H |
External |
Outlet |
|
94mm V-band Set |
●Inlet = EX manifold side ●Outlet = Front pipe/turbine outlet side
