Universal Revolution RS Muffler(s) with GReddy Tip

Sale price$200.00
Out of Stock

Select Size:: 11001126 - 2.5" Universal Revolution RS Muffler with replaceable 105mm Tip

Select Size:

Universal Stainless-steel Revolution RS Muffler with replaceable Tip:
  11001126* - 2.5" (63.5mm) Inlet / 140xL300mm body / 105xL120mm tip
  11001131* - 3.0" (76mm) Inlet / 160xL300mm body / 115xL120mm tip

* Removable type tips allow for use of GReddy RS SUS, Ti tips in various lengths and/or GReddy RS silencers.

Universal Revolution RS Muffler with welded on Tip: (non-removable)

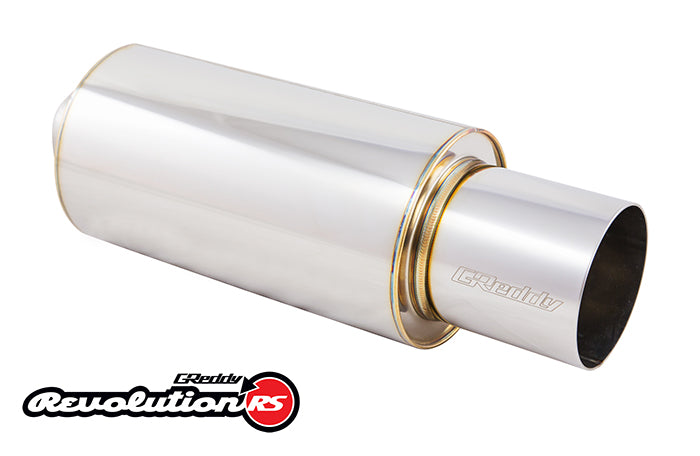

  11001125 - 2.5" (63.5mm) Inlet / 140xL300mm body / 105xL120mm tip
  11001130 - 3.0" (76mm) Inlet / 160xL300mm body / 115xL120mm tip

** welded-on type tips are not compatible with GReddy RS options!

 GReddy Universal Revolution RS Muffler and Tip sets create options for custom (single or dual muffler) applications as well as for vehicles not covered by the current application specific line-up. The RS Universal mufflers are offered in two sizes.  There is a 140mm diameter X L300mm can with 2.5" (63.5mm) inlet includes a 105mm Dia. x L120mm stainless steel tip and a 160mm diameter X L300mm can with 3.0" (76mm) inlet includes a 115mm Dia. x L120mm stainless steel tip.  Now with our Tri-bolt removable Tip, optional GReddy RS tips of different length, material and shape are also be purchased separately for even more customization. Our signature high-quality, straight-through, universal RS mufflers offer exceptional flow with a clean, aggressive exhaust note. The compact 304 stainless-steel mufflers feature our improved internal construction with long lasting, high temperature-resistant sound suppression materials. For something special, revolutionize your car with a custom GReddy exhaust.


2.5" Dia. Universal Muffler and Tip set   *(with replaceable GReddy RS tip)

Muffler Type: 140mm Round Revolution RS
    Type: Straight-through
    Inlet OD  : 63.5mm (2.5")
    Dia.: 140mm (5.5")
    Length: 300mm (11.8")

Tip Type: Single-wall Stainless-steel with GReddy Logo
   Dia.: 105mm (4.1")
   Length:  120mm (4.7")

   Piping Extension: L38mm (1.5")
     - 2.5" piping at the back of the muffler for easier welding.



3.0" Dia. Universal Muffler and Tip set   *(with removable GReddy RS tip)

Muffler Type: 160mm Round Revolution RS
    Type: Straight-through
    Inlet OD  : 76mm (3.0")
    Dia.: 160mm (6.3")
    Length: 300mm (11.8")

Tip Type: Single-wall Stainless-steel with GReddy Logo
   Dia.: 115mm (4.5")
   Length:  120mm (4.7")

   Piping Extension: L38mm (1.5")
     - 3.0" piping at the back of the muffler for easier welding.

Notes:
  requires welding (and cutting) for mounting and attaching piping.

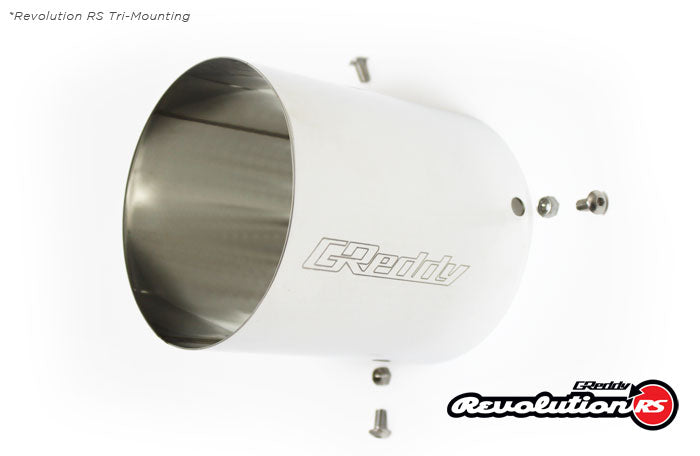

  * Removable Tip systems : Optional GReddy RS Tips are available in various lengths, Stainless Steel or Titanium or Titanium Turn-down.  Also compatible with GPP RS Tip Silencers.

Material: 304 Stainless-steel

*Because of the custom application, this Universal Revolution RS is NOT valid for the Limited Lifetime Warranty of the application specific Revolution RS systems.
