GReddy WRX/STI T-24 Intercooler Kit(s) - VAB

12060416 GReddy Intercooler Kit VAB SPEC-LS T-24E with Blow-off FV2 Set

          (*12060414 GReddy Intercooler Kit VAB SPEC-LS T-24E (without BOV))

[VAB] GReddy Intercooler SPEC-LS

Product features

Intercooler with blow-off valve, highly requested by users

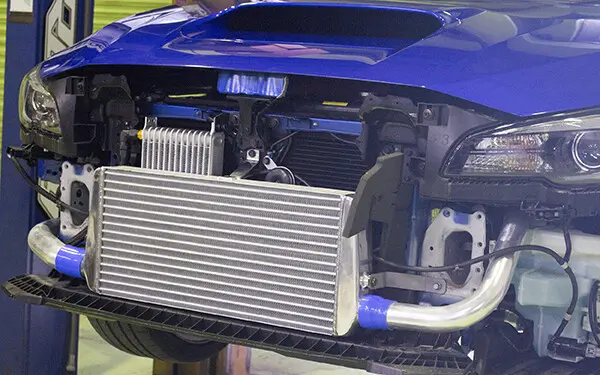

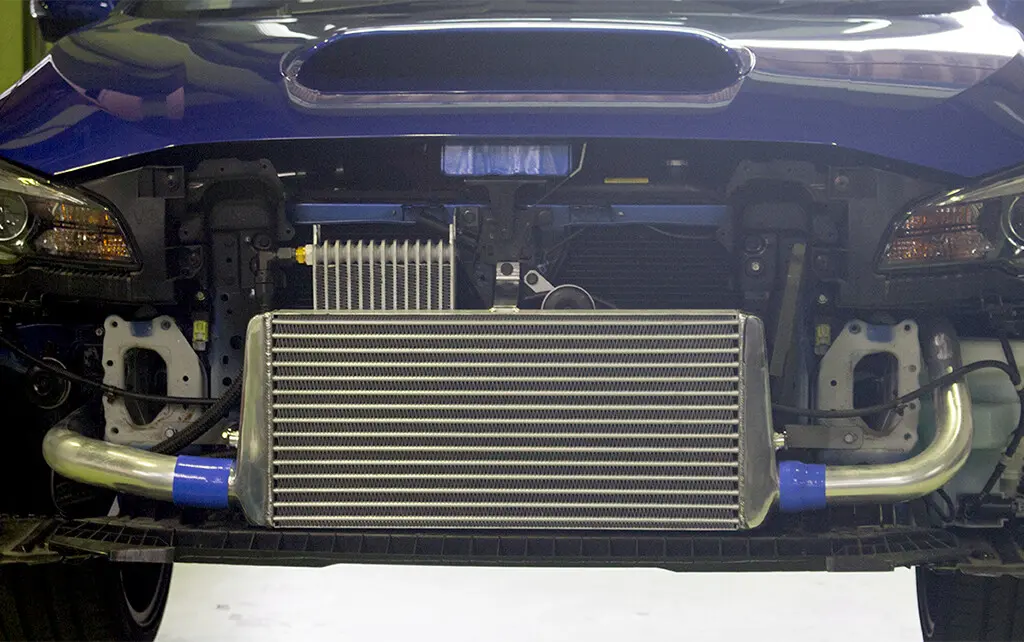

The original top mount has been changed to a front mount that emphasizes cooling, and a special design that allows for the installation of a blow-off valve.

"GReddy INTERCOOLER SPEC-LS" combines functionality and design

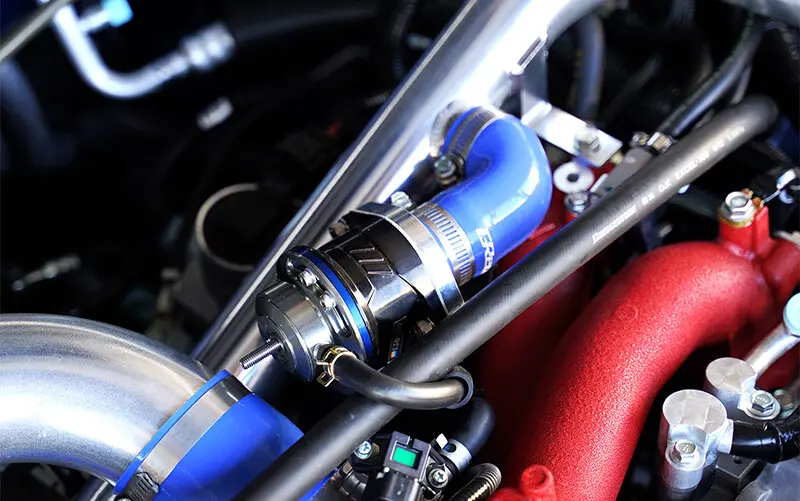

*The blow-off valve in the photo is FV. Currently, the FV2 is included in the kit.

Specification

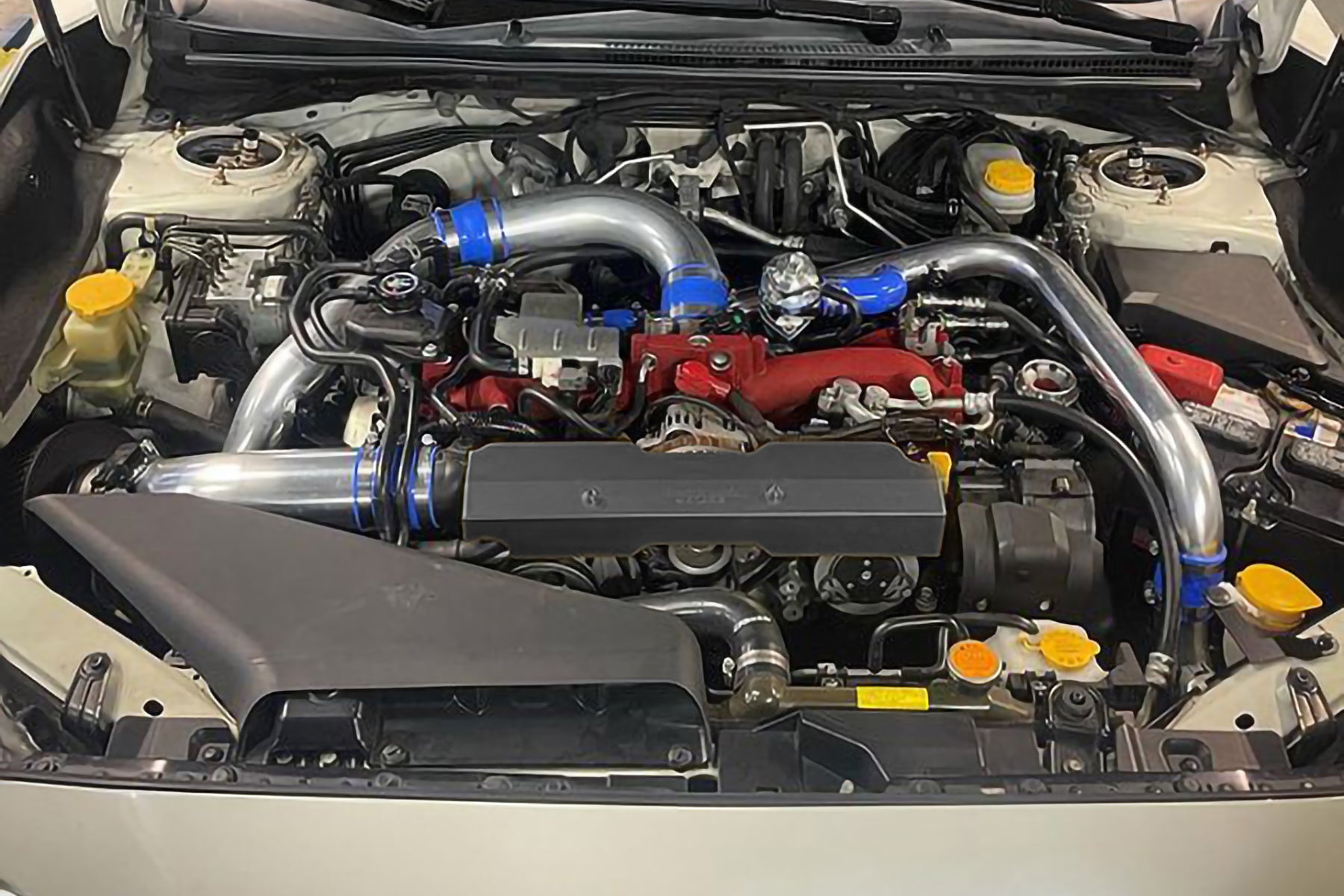

Separately, AIRINXSET SB-M011 is required (CODE: 12560811)

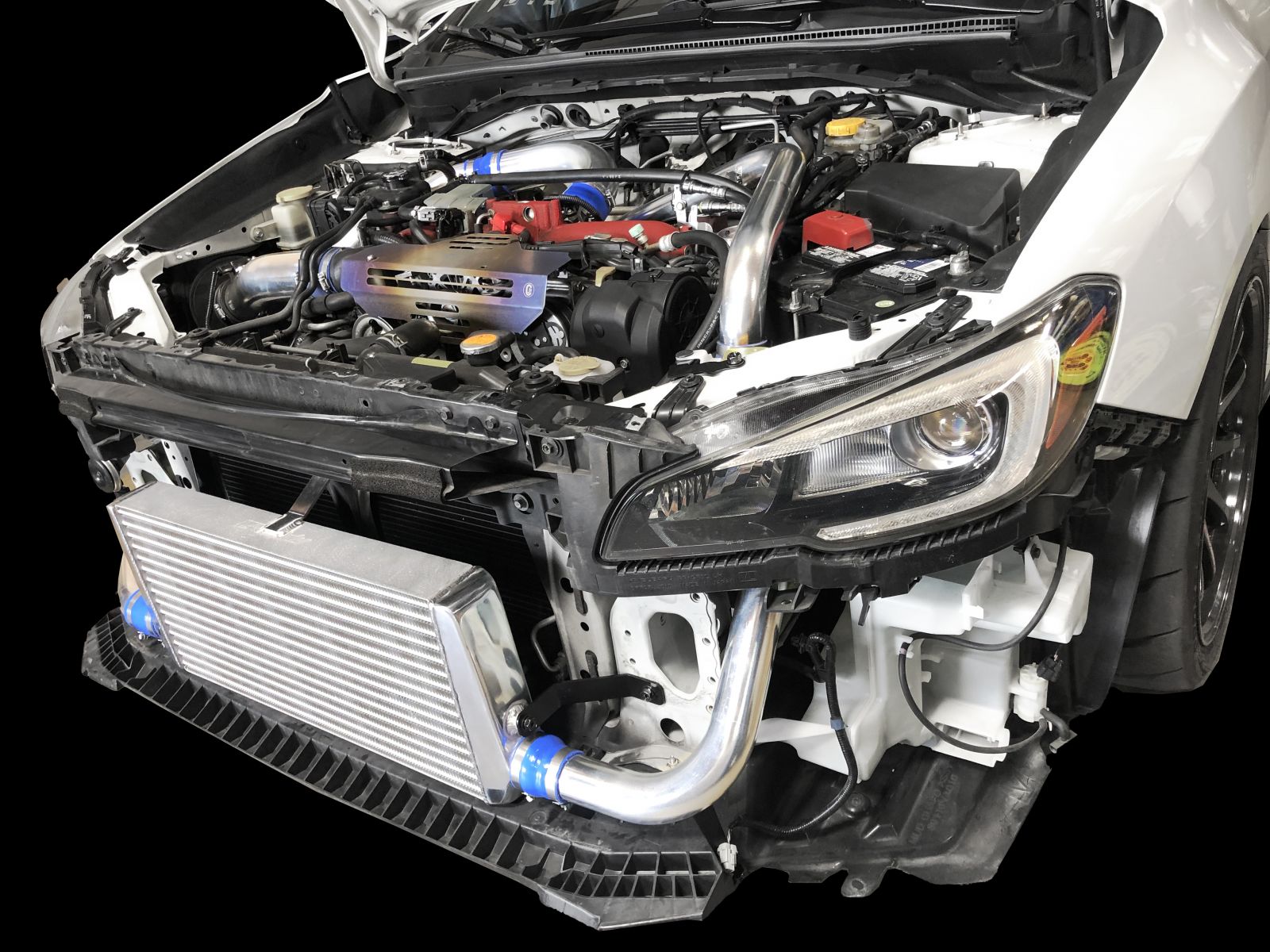

Can be installed at the same time as GReddy oil cooler kit (CODE: 12064609)
Requires bumper processing and reinforcement (genuine part name: Bumper beam COMPL-Front) removal
Blow-off valve is return specification

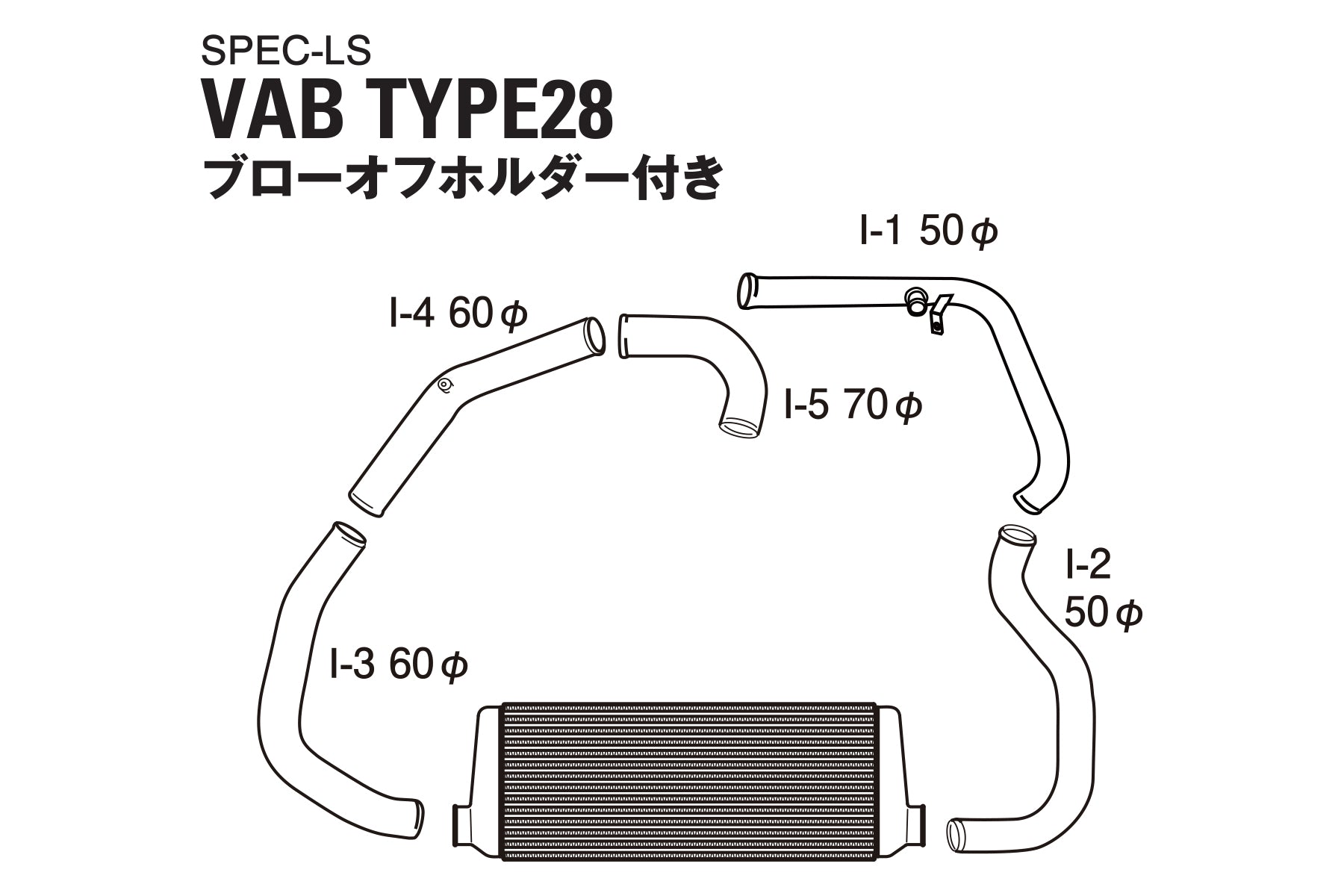

≪Product composition≫

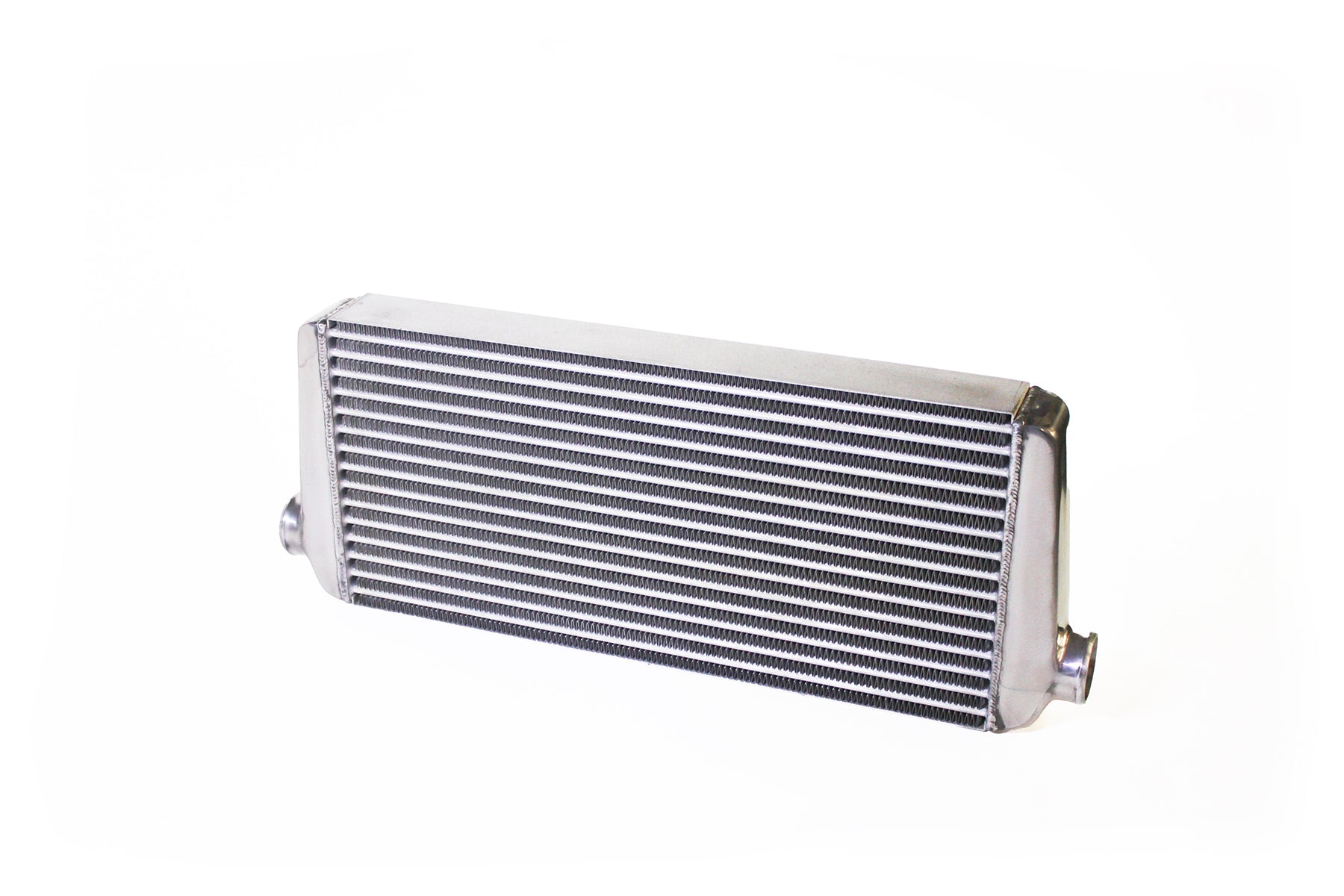

Intercooler core (TYPE24E: H284xL600xW66)

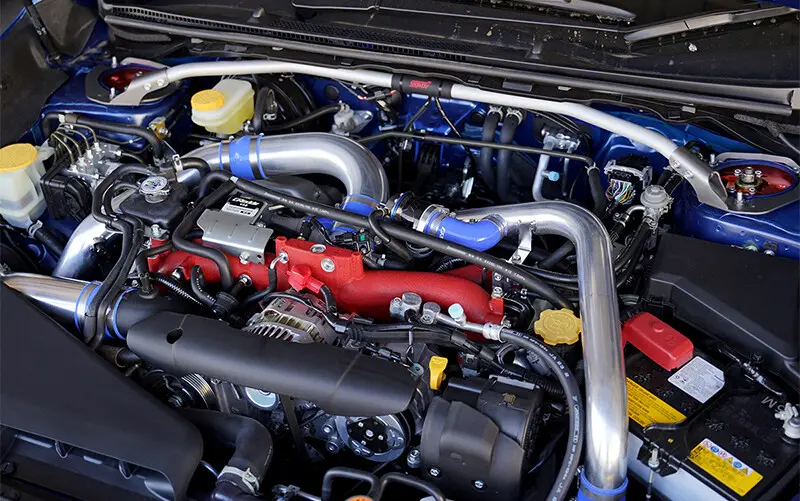

Intake tube (aluminum) 50φ, 60φ, 70φ
dedicated blow-off valve set
and other short parts set

[Compatible models] Subaru / WRX STi

Compatible model: VAB
Engine model:
EJ20 model year : 14.08-20.04

TRUST CODE: 12060416

* also see p/n 1426800 Competition-only Front Bumper Bar
