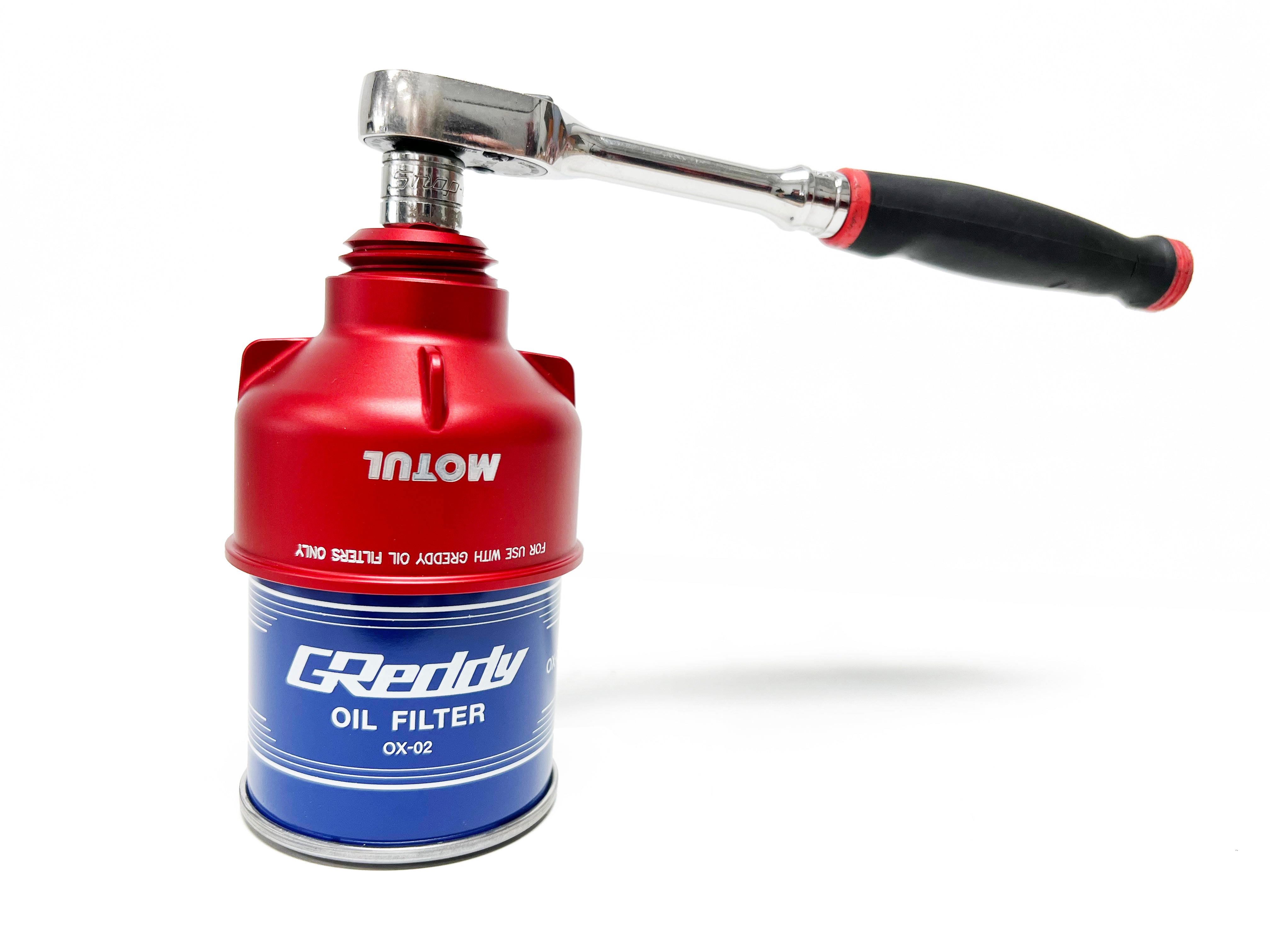

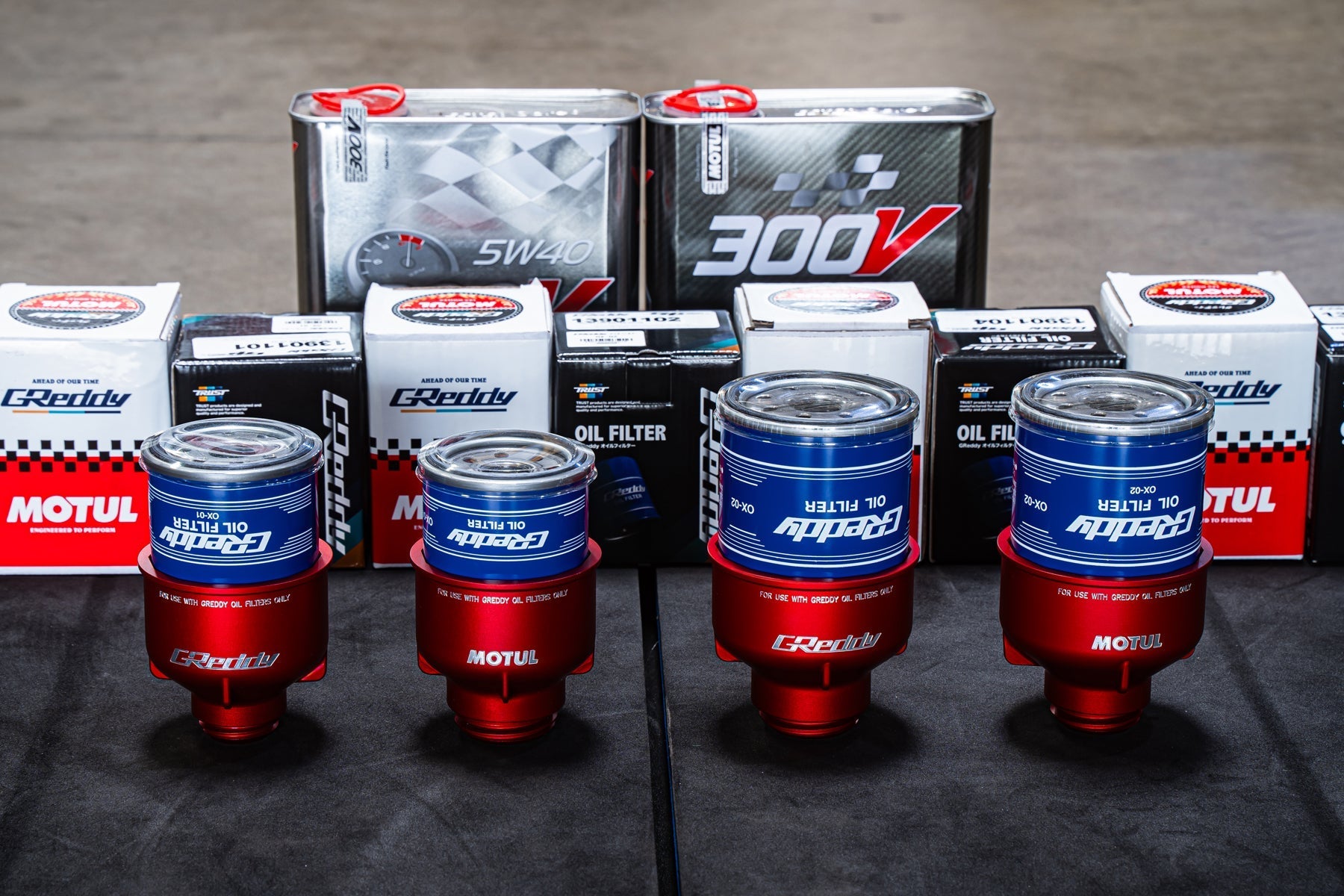

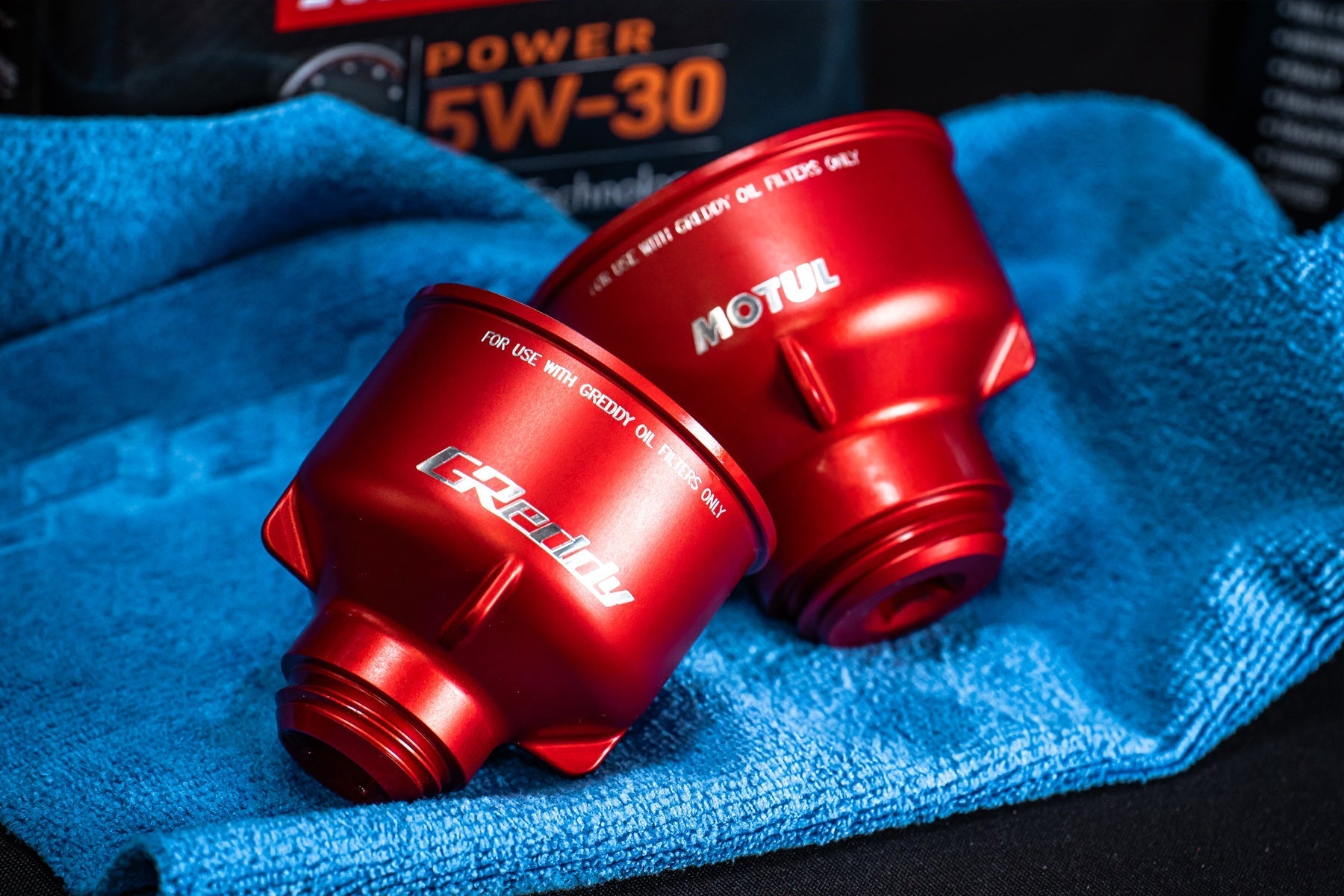

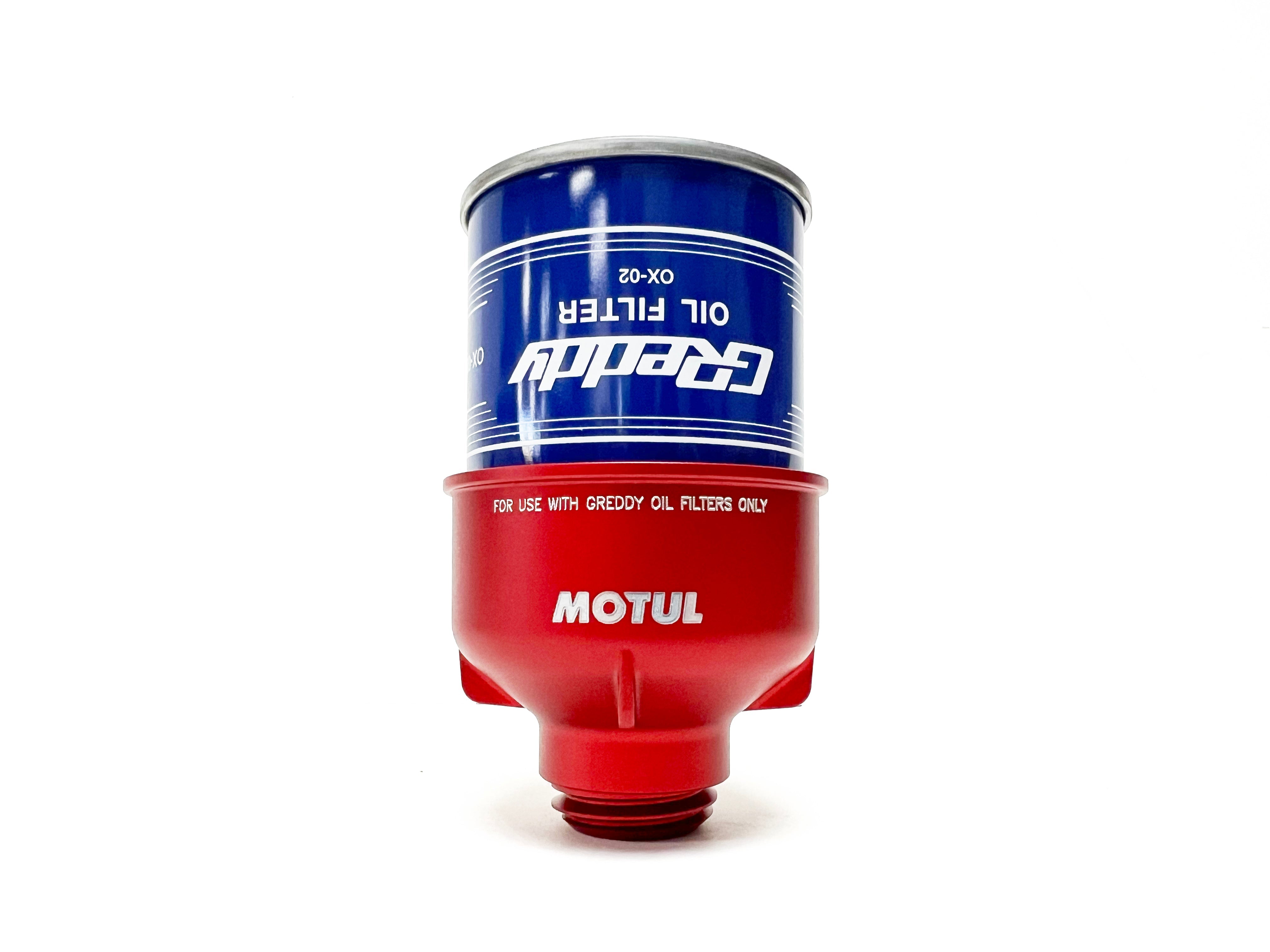

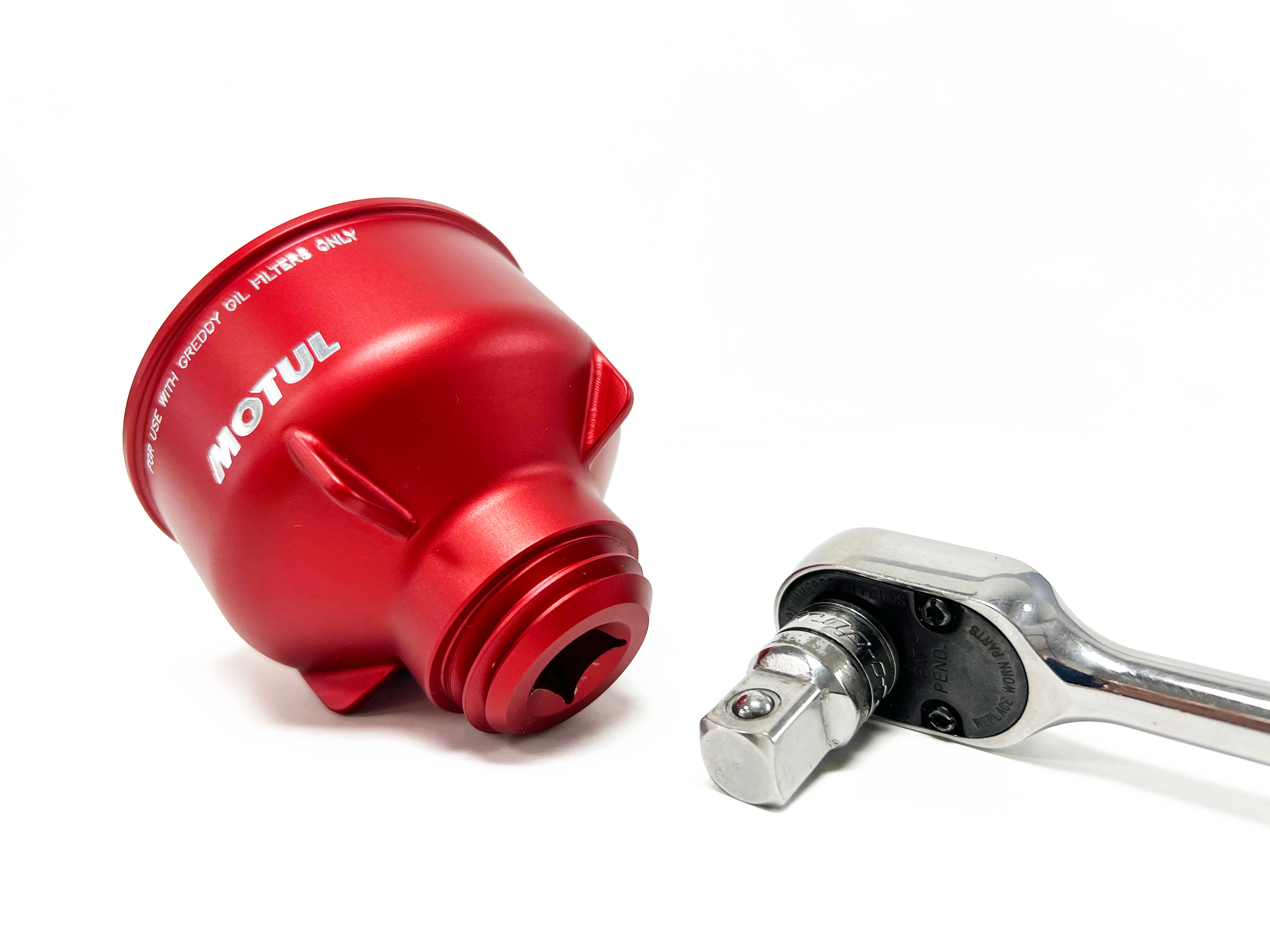

GReddy X Motul Aluminum Funnel / Oil Filter Removal Tool & GReddy Sports Oil Filter Set(s)

Sale price$80.00

Select Funnel and Oil Filter Size: 13901602-OX02 - M42xP4.5 / K72.4 / H85 / 3/4-16UNF = misc.

Select Funnel and Oil Filter Size

GReddy X Motul Aluminum Oil Filter Removal Tools & Sports Filters

   Part Number  - Funnel Thread / Key / Height / Filter Thread

  13901601-01 - M32xP3.5  / K64 / H70 / 3/4-16UNF = Nis. SR20-Red
  13901601-03 - M32xP3.5  / K64 / H84 / 3/4-16UNF = Nis. RB26, RB25
  13901601-04 - M32xP3.5  / K64 / H65 / M20xP1.5 = Nis. SR20 Blk, VQ, VR, & most Honda - B
  13901601-05 - M32xP3.5  / K64 / H85 / M20xP1.5 = some Honda

  13901602-02 - M42xP4.5  / K72.4 / H85 / 3/4-16UNF = misc.

  13901603-02 - M37xP3.0  / K72.4 / H85 / 3/4-16UNF = most Toy. (non-JZ)

  13901604-04 - M42xP4.5  / K64 / H70 / M20xP1.5 = Sub. (incl. FA20- Toy FRS/86)

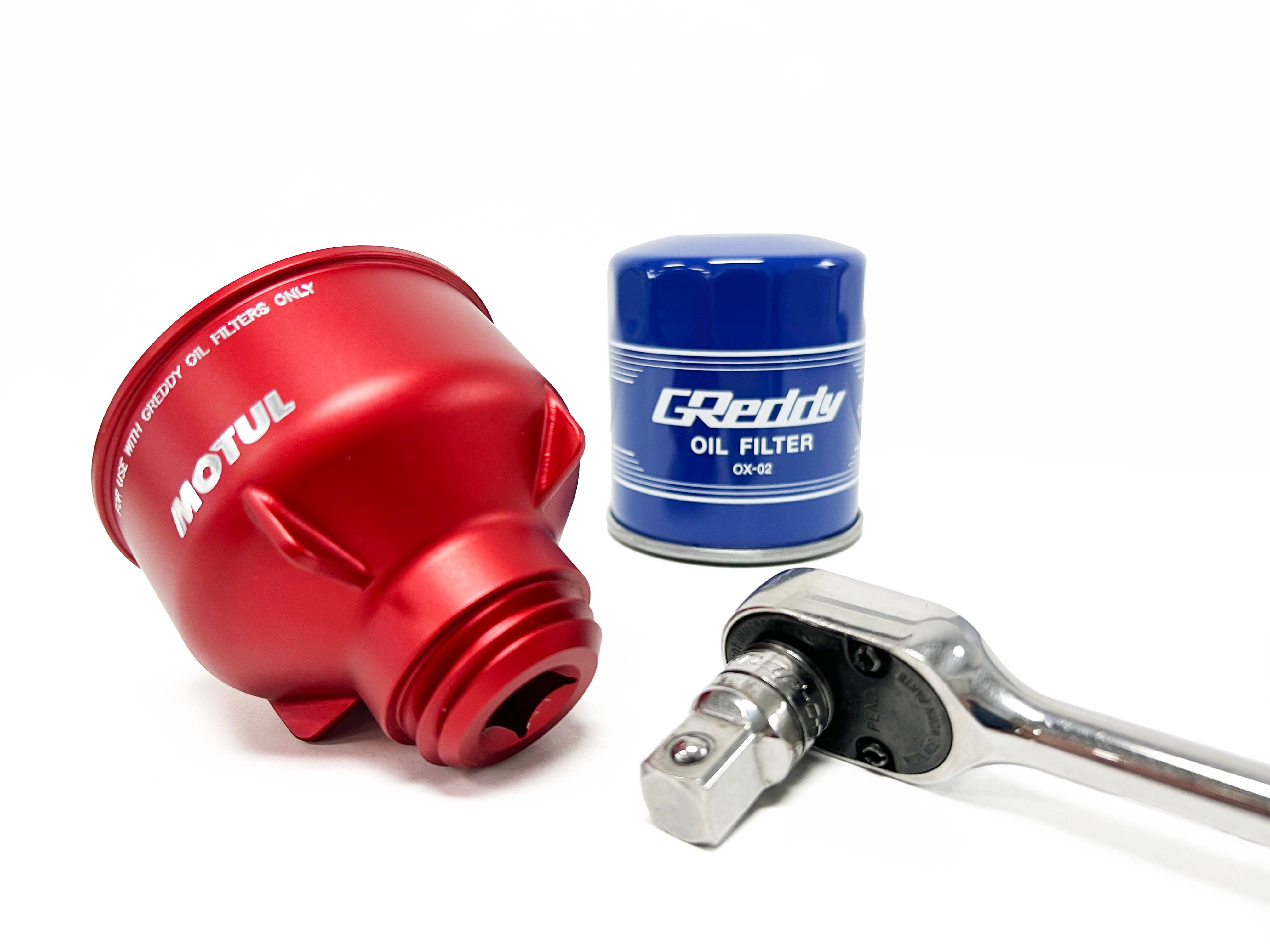

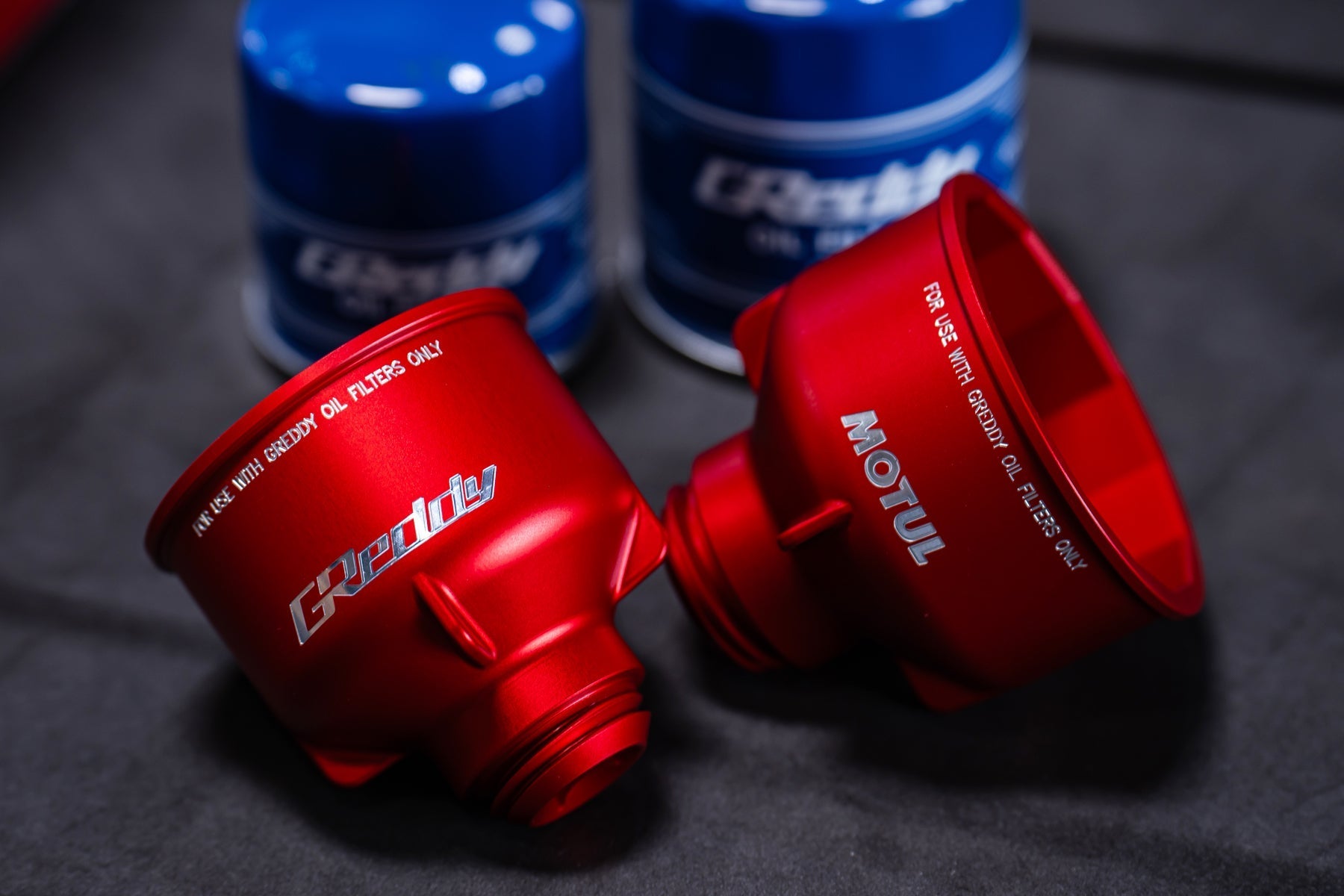

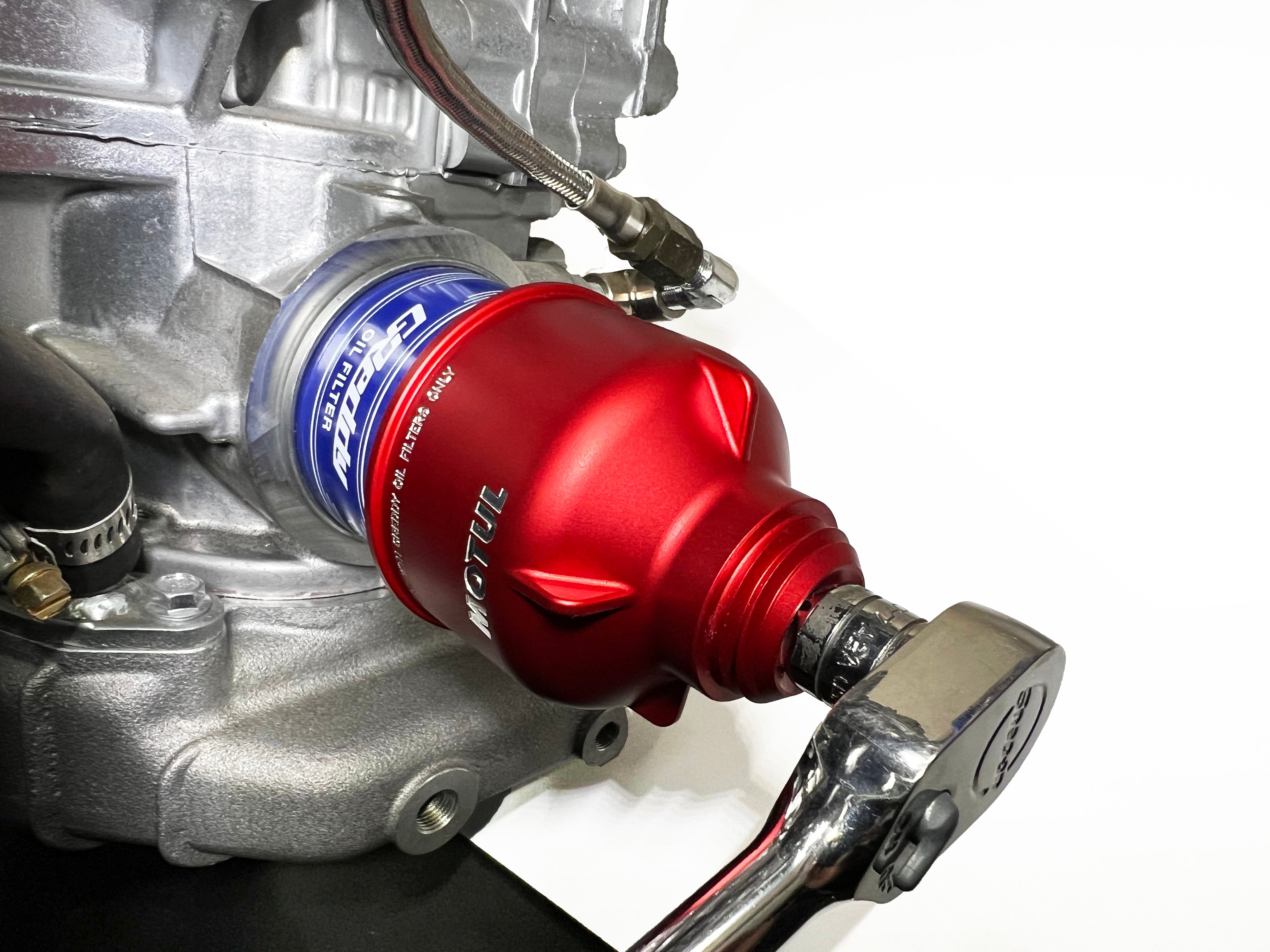

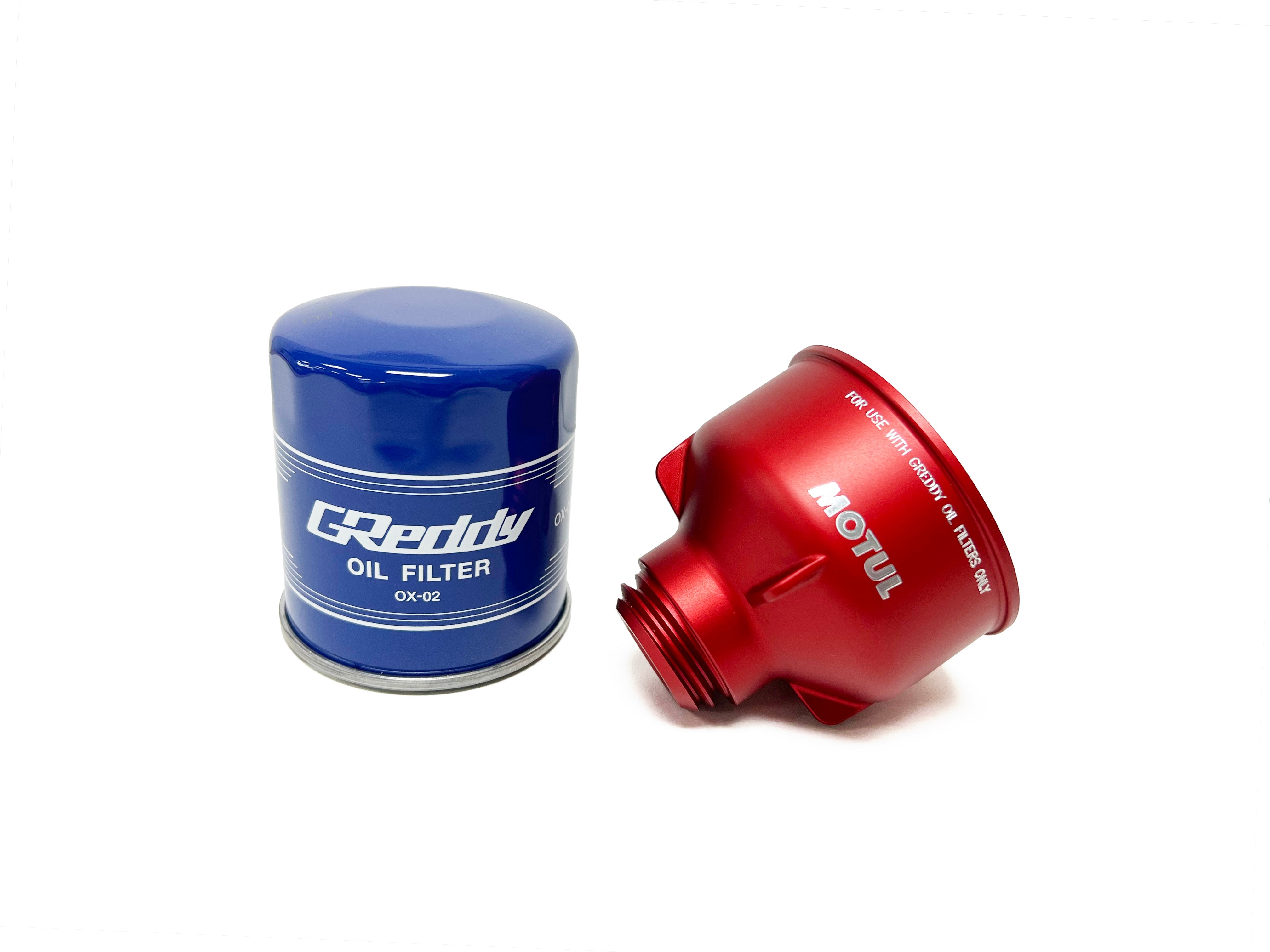

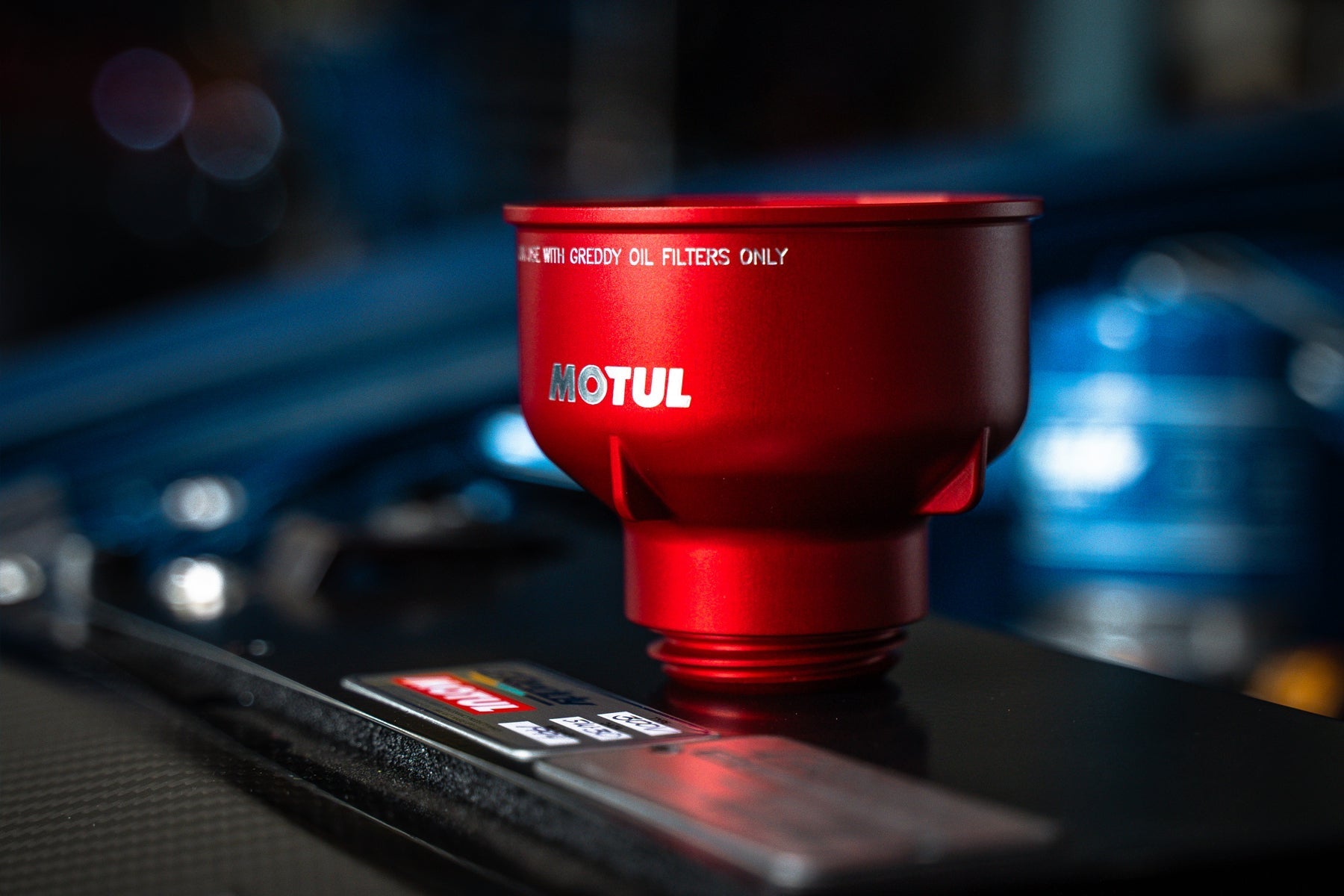

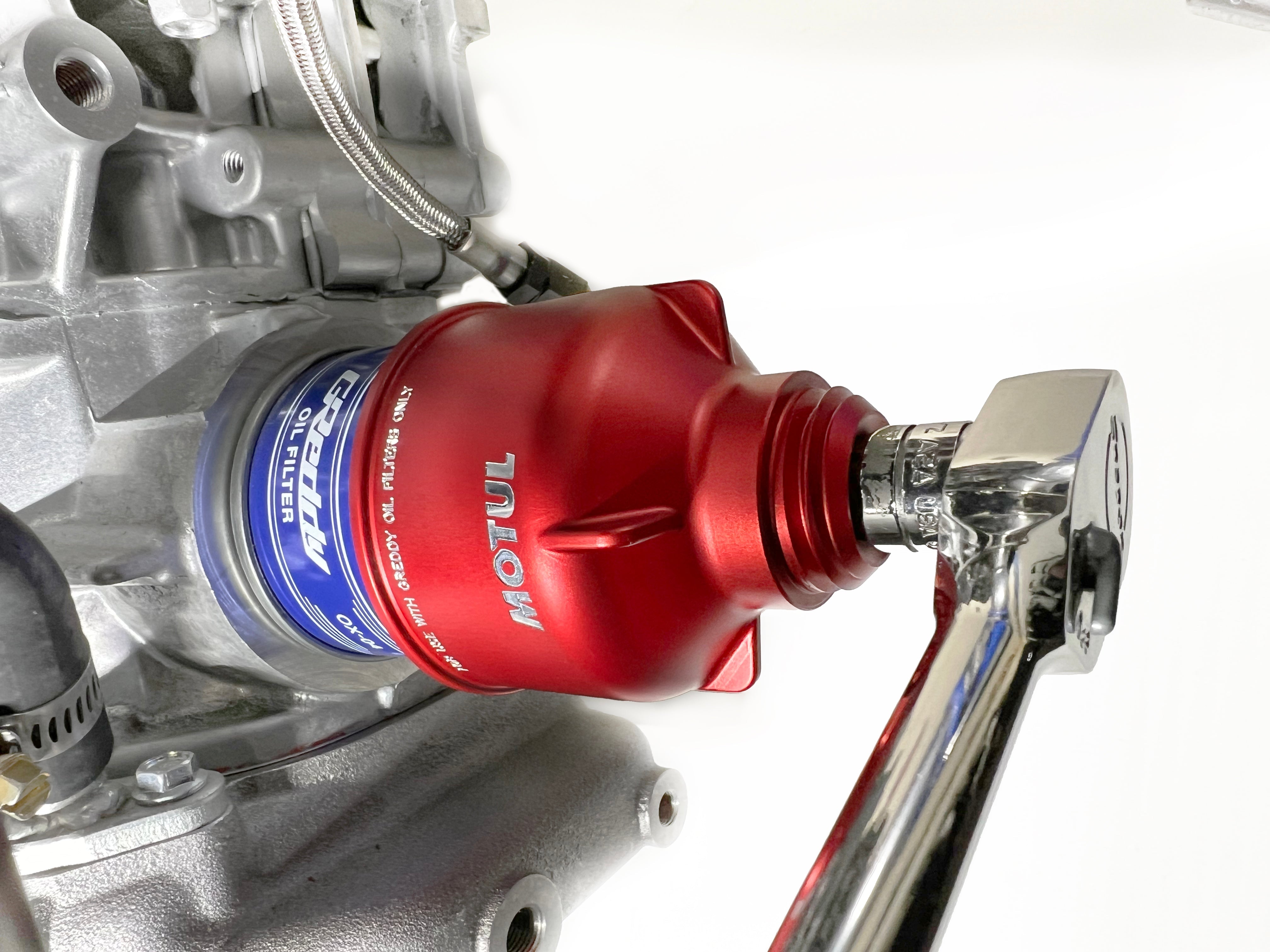

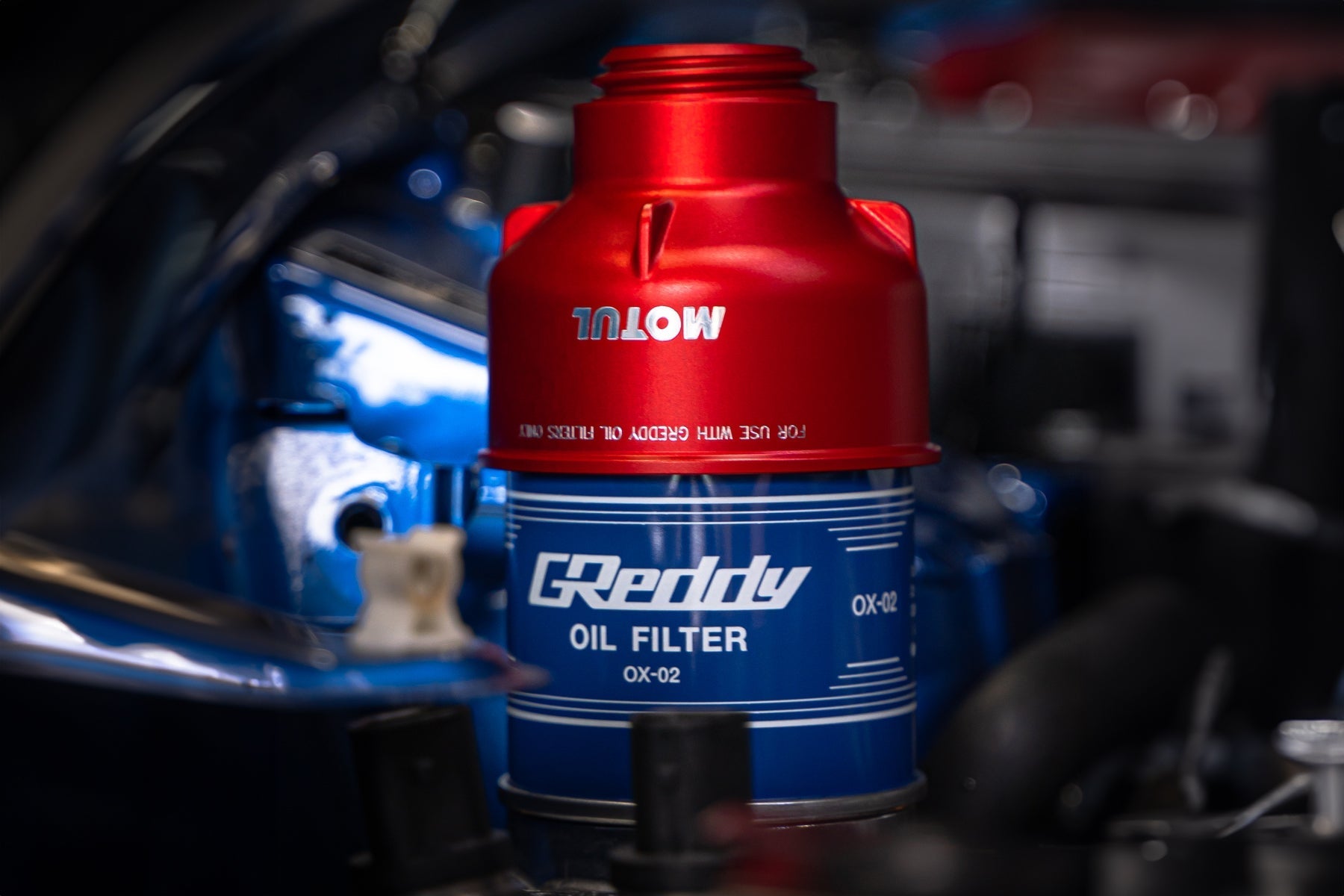

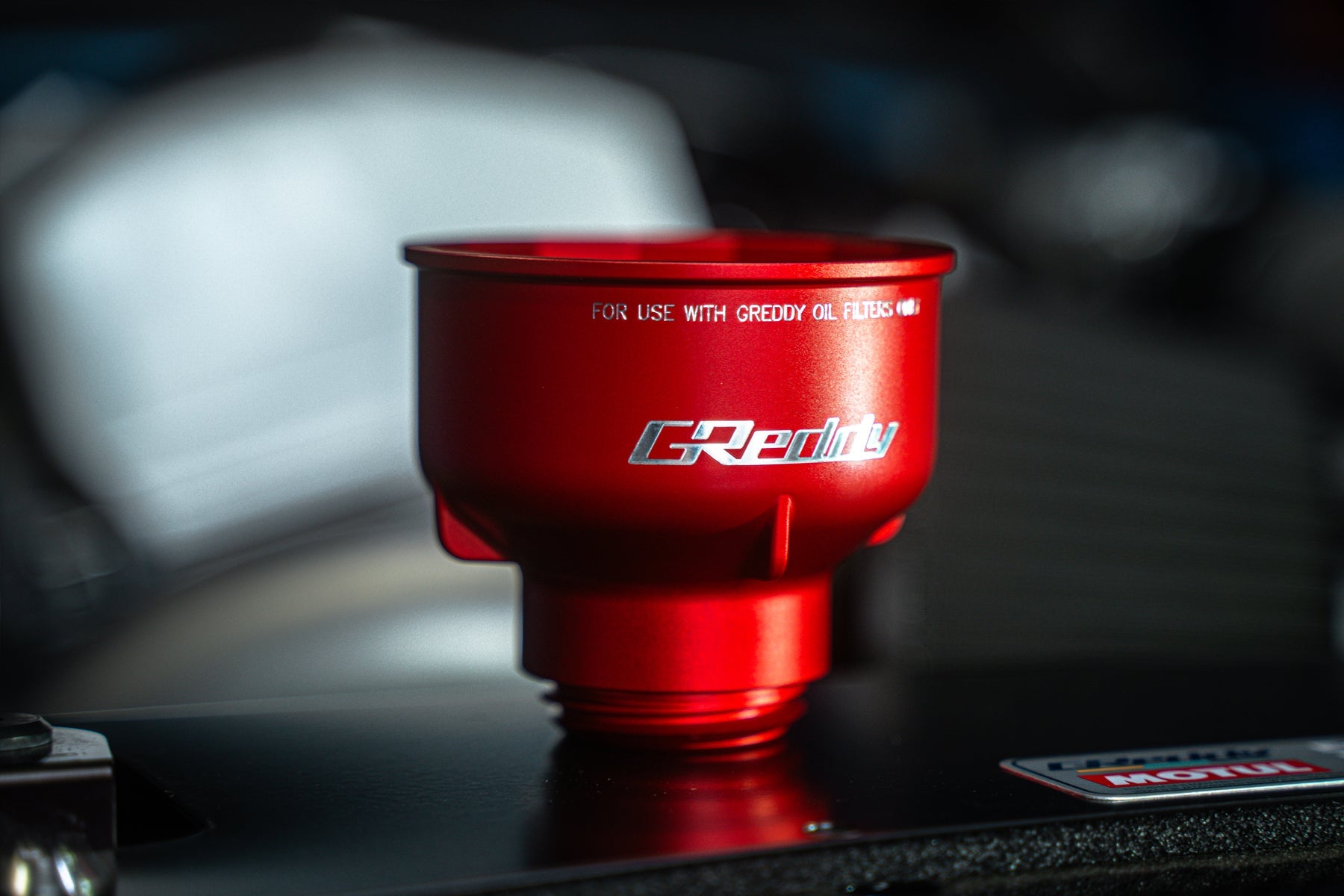

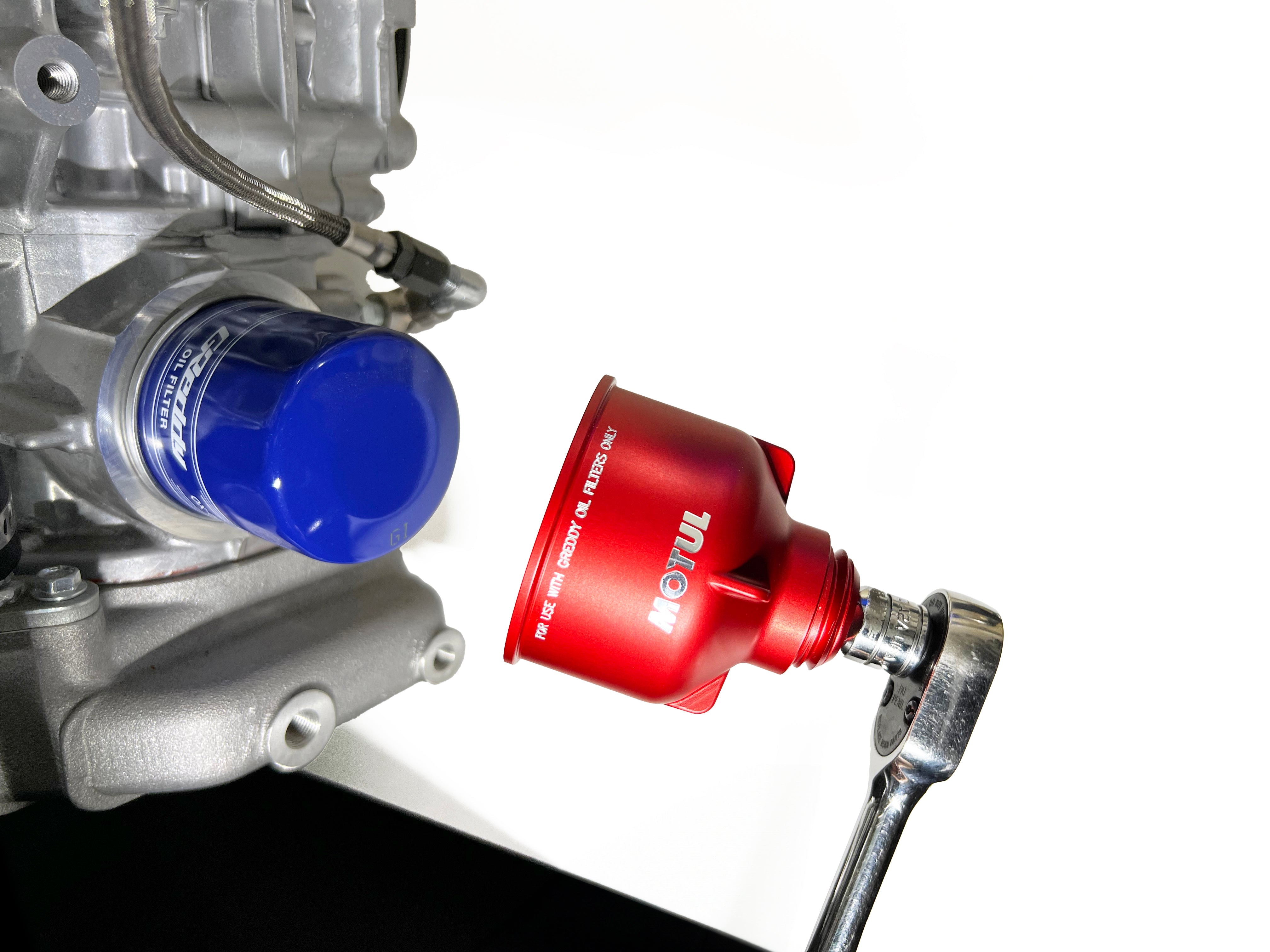

GReddy X Motul Oil Filter Socket removal tool / Oil funnel (13901601)

  • Machined 6061-T6 billet aluminum.
  • Anodized red with machined logos.
  • Application specific funnel thread pitch, M32 for Most Honda/Nissan applications.
  • Oil Filter Socket paired with GReddy Sports OX Oil Filter (OX-01, OX-03, OX-04 & OX-05).
  • Aluminum oil change plaque
  • Oil filter identification badge



GReddy X Motul Oil Filter Socket removal tool / Oil funnel (13901602)

  • Machined 6061-T6 billet aluminum.
  • Anodized red with machined logos.
  • Application specific funnel thread pitch, M42 for Toyota FT86, Subaru BRZ (EJ20).

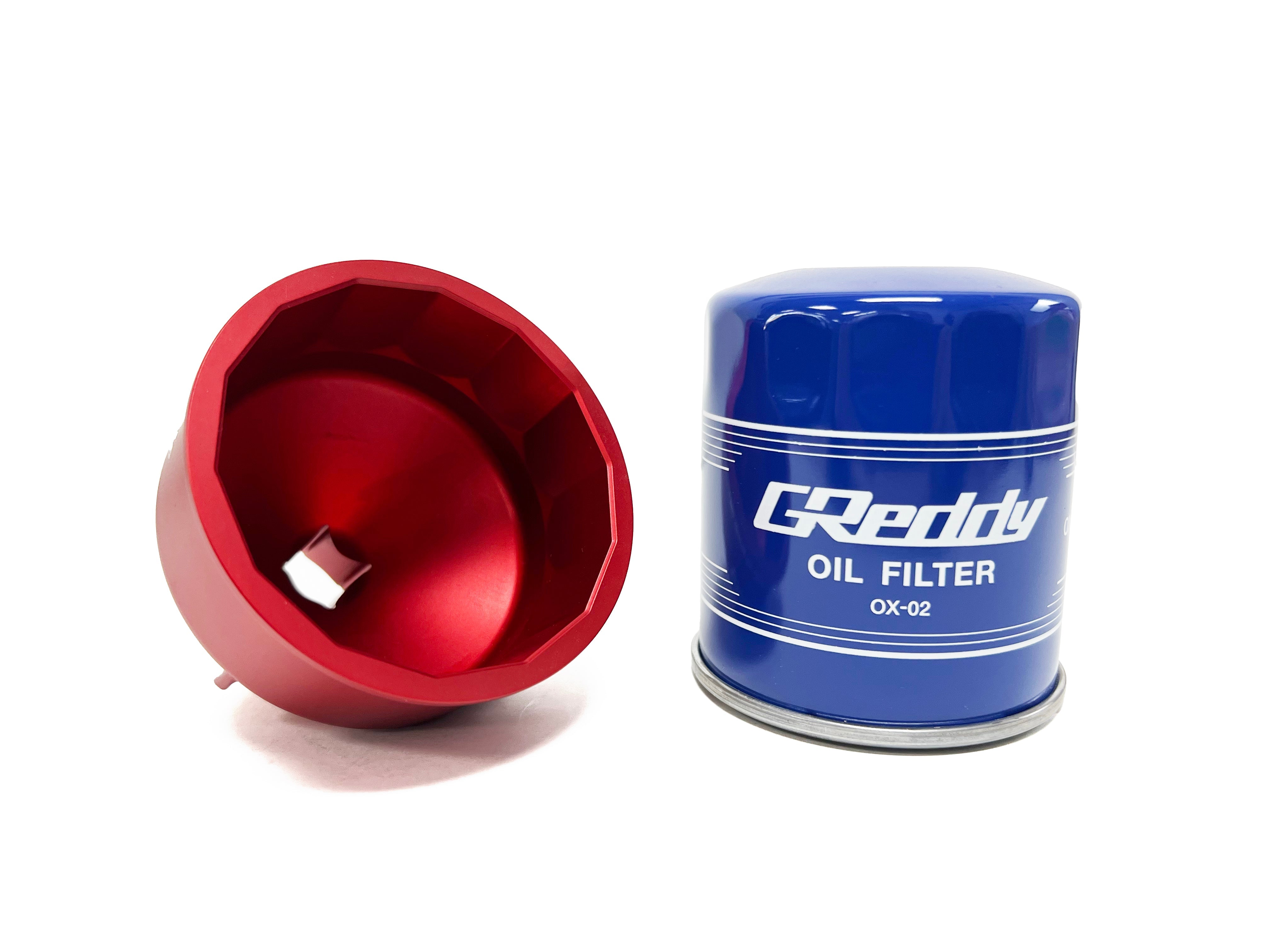

  • Oil Filter Socket made for GReddy Sports OX Oil Filter (OX-02).
  • Aluminum oil change plaque
  • Oil filter identification badge



GReddy X Motul Oil Filter Socket removal tool / Oil funnel (13901603)

  • Machined 6061-T6 billet aluminum.
  • Anodized red with machined logos.
  • Application specific funnel thread pitch, M36 for most Toyota applications. (Non 2JZ engine).
  • Oil Filter Socket made for GReddy Sports OX Oil Filter (OX-02).
  • Aluminum oil change plaque
  • Oil filter identification badge



GReddy X Motul Oil Filter Socket removal tool / Oil funnel (13901604)

  • Machined 6061-T6 billet aluminum.
  • Anodized red with machined logos.
  • Application specific funnel thread pitch, M32 for most Subaru applications.
  • Oil Filter Socket made for GReddy Sports OX Oil Filter (OX-01, OX-03, OX-04 & OX-05).
  • Aluminum oil change plaque
  • Oil filter identification badge



GReddy Sport Oil Filter Application Chart

OX-01:

Thread Size: 3/4-16UNF / Dia: 65mm  / Height: 70mm / Base OD 69mm / O-ring ID 55mm / O-ring OD 62mm / Key Sides 14 / Key Width 64mm
     Fits Engines: JDM 3/4 GReddy Oil Cooler Blocks*, Toyota-4AG, 3SG, Nissan SR20 (Red)

OX-02:

Thread Size: 3/4-16UNF / Dia: 74mm  / Height: 85mm / Base OD 78mm / O-Ring ID 63mm / O-Ring OD 71mm / Key Sides 14 / Key Width 72.4mm
    Fits Engines: Toyota- 1JZ, 2JZ, 1G

OX-03:

Thread Size: 3/4-16UNF / O-ring Dia: 65mm / Height: 84mm / Base OD 69mm / O-ring ID 54mm / O-ring OD 62mm / Key Sides 14 / Key Width 64mm
     Fits Engines: JDM 3/4 GReddy Oil Cooler Blocks*, Toyota-4AG, 3SG, Nissan RB

OX-04:

Thread Size: M20xP1.5 / Dia: 65mm  / Height: 65mm / Base OD 69mm / O-ring ID 55mm / O-ring OD 62mm / Key Sides 14 / Key Width 64mm
     Fits Engines: Nissan VQ, SR(Black), VR38DETT, Mazda BP, 13B, Honda ZC, B16, B18, B17, Subaru EJ, Subaru EJ20,25 FA20, Scion 4U-GSE, GReddy M20 Oil Blocks**

OX-05:

Thread Size: M20xP1.5 / Dia: 65mm  / Height: 85mm / Base OD 69mm / O-ring ID 54mm / O-ring OD 62mm / Key Sides 14 / Key Width 64mm
     Fits Engines: Honda ZC, B20, Mitsubishi 4G6#, 6A12, Mazda K8, FS

OX-06:
Thread Size: 3/4-16UNF / O-ring Dia: 62mm / Height: 50mm / Base OD 72mm / O-ring ID 56mm / O-ring OD 66mm / Key Sides 14 / Key Width 66mm
     Fits Engines: JDM 3/4 GReddy Oil Cooler Blocks*, compact size - NEW
