90 DEG HOSE UNION NO.6 10MM - 1/4 SWIVEL NIPPLE - (11900625)
Fig. #6

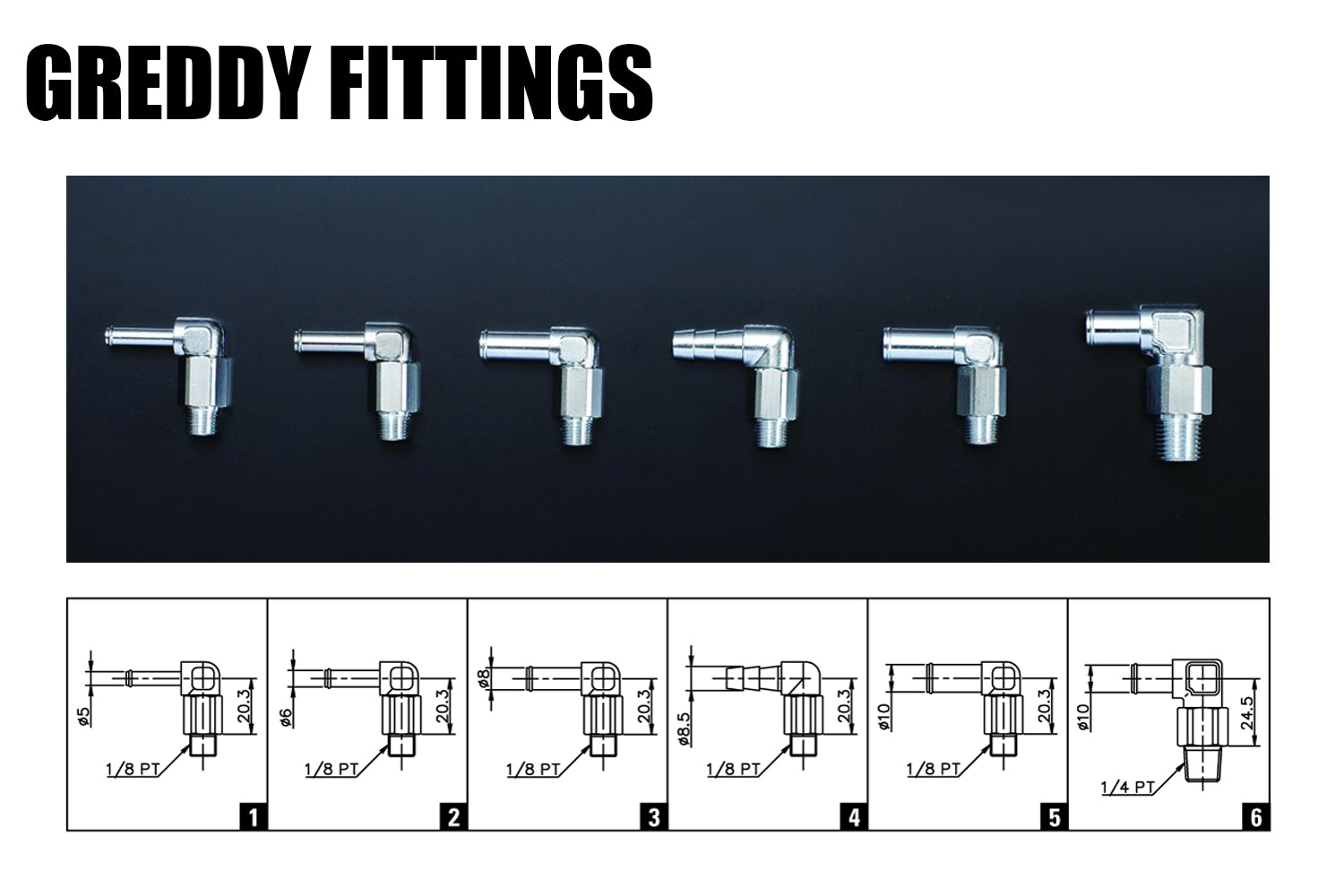

A brass chrome-plated union used when air piping is bent at 90°.
We have a lineup of 6 types to suit different applications.
size | shape | specification | CODE | remarks |
---|---|---|---|---|
5φ-1/8PT | 1 | 90° | 11900620 | Brass Cr plated |
6φ-1/8PT | 2 | 90° | 11900621 | Brass Cr plated |
8φ-1/8PT | 3 | 90° | 11900622 | Brass Cr plated |
8φ-1/8PT | 4 | 90° bamboo shoot shape | 11900623 | Brass Cr plated |
10φ-1/8PT | 5 | 90° | 11900624 | Brass Cr plated |
10φ-1/4PT | 6 | 90° | 11900625 | Brass Cr plated |
![90 DEG HOSE UNION NO.6 10MM - 1/4 SWIVEL NIPPLE - (11900625)](http://www.greddy.com/cdn/shop/files/90HoseUnion_d122f4f1-e1d8-44a2-a55a-7b6d846acb14.jpg?v=1712120176&width=1500)
90 DEG HOSE UNION NO.6 10MM - 1/4 SWIVEL NIPPLE - (11900625)
Sale price$14.00
Regular price$0.00 (/)
