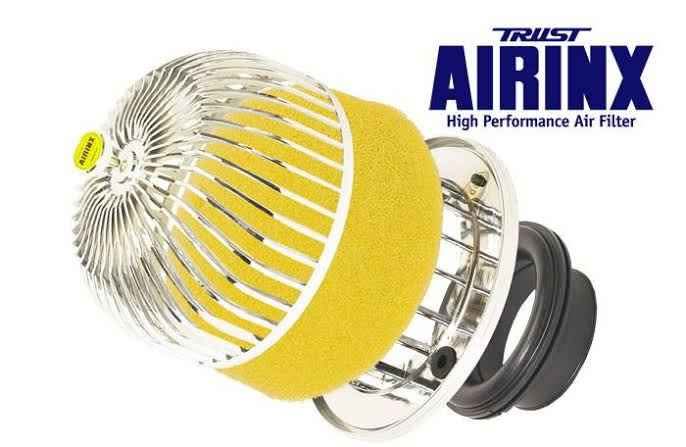

AIRINX OPTIONAL HOSE UNIONS FITTING(S) - (11900500 through 11900508)


Chrome-plated brass Airinx Hose Union Fitting for new GReddy Airinx A/F type base plates and older AY units.

GReddy Optional Airinx Filter Hose Union Fittings

Part name  Fig. Size p/n Remarks
INX-02002 1 5Φ-M18xP1.5 11901500 • Machined aluminum for mounting air return screws
INX-02004 2 8Φ-M18xP1.5 11901501 • Machined aluminum for mounting air return screws
INX-02014 3 10Φ-M18xP1.5 11901508 • Machined aluminum for mounting air return screws
INX-02005 4 18Φ-M18xP1.5 11901504 • Machined aluminum for mounting air return screws
INX-02013 5 6Φ-M18xP1.5 11901505 • Brass Cr plating for air return thread mounting
INX-02011 6 5Φ-M6xP1.0 11901506 • Brass Cr plating for mounting the back side thread
INX-02010 7 6Φ-M6xP1.0 11901507 • Brass Cr plating for mounting the back side thread
