GReddy - Airinx Hose Union Fitting(s) - M5-M18
GReddy Optional Airinx Filter Hose Union Fittings

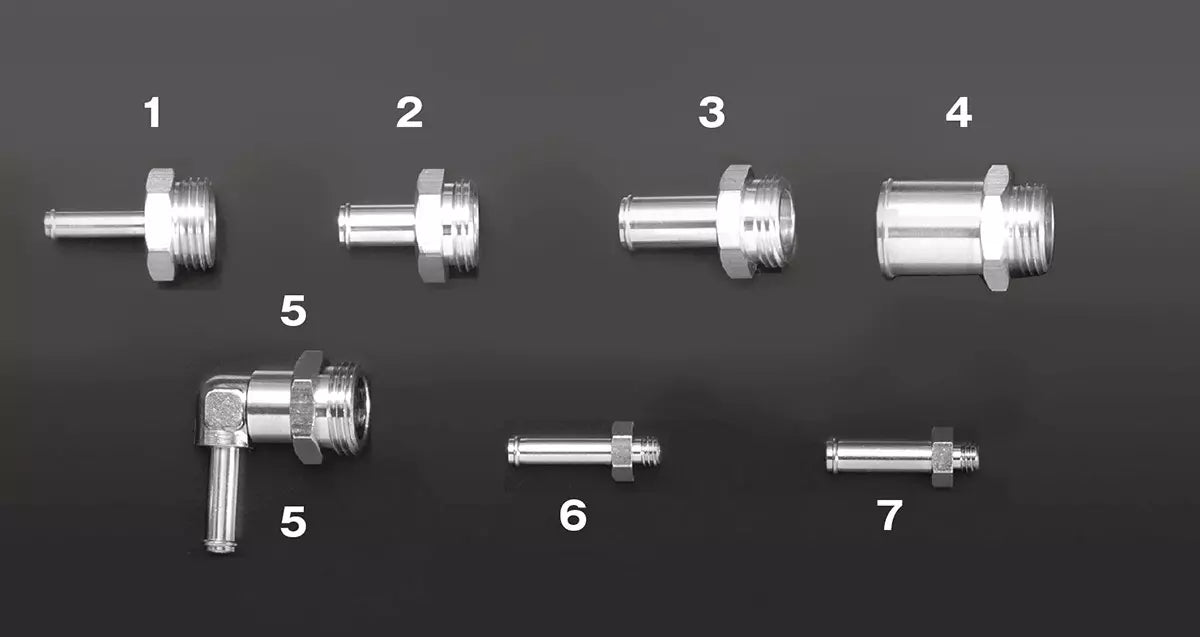

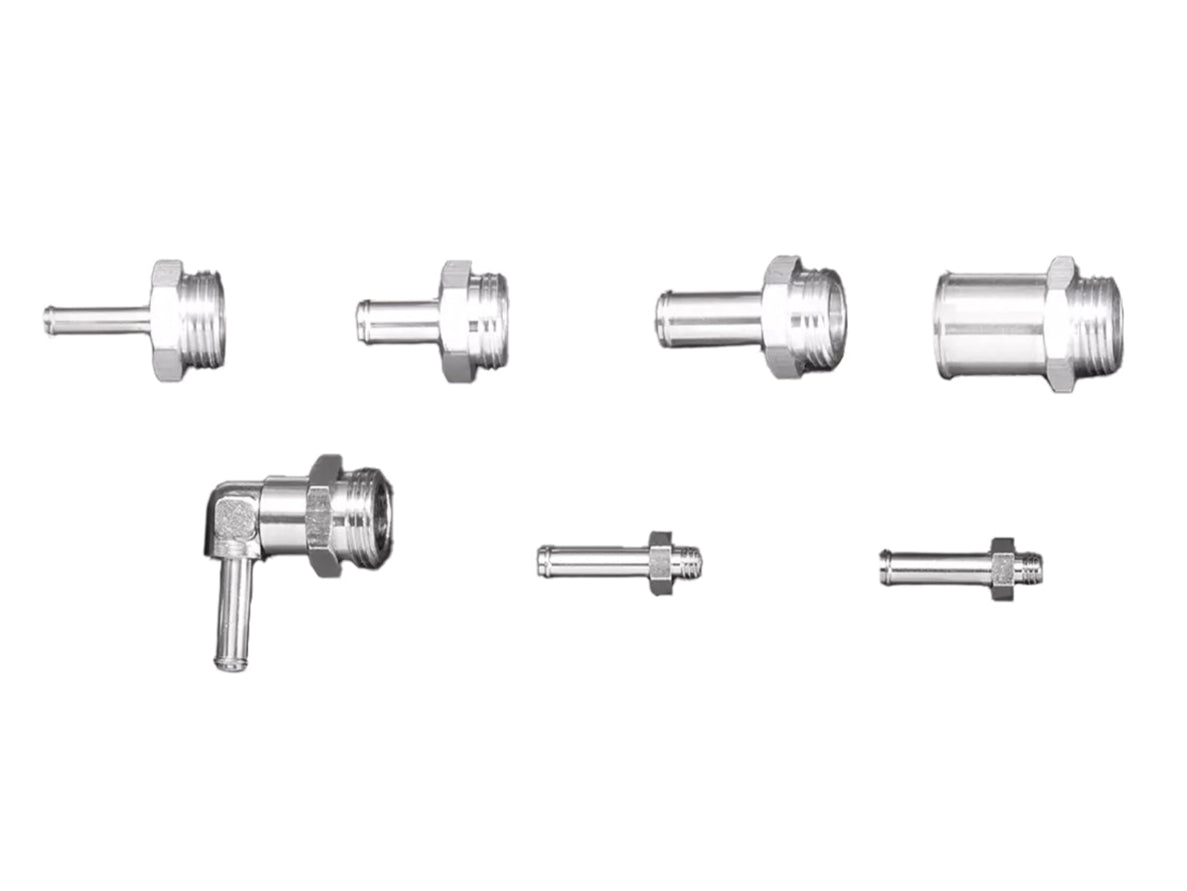

| Part name | Fig. | Size | p/n | Remarks |
|---|---|---|---|---|
| INX-02002 | 1 | 5Φ-M18xP1.5 | 11901500 | • Machined aluminum for mounting air return screws |
| INX-02004 | 2 | 8Φ-M18xP1.5 | 11901501 | • Machined aluminum for mounting air return screws |
| INX-02014 | 3 | 10Φ-M18xP1.5 | 11901508 | • Machined aluminum for mounting air return screws |
| INX-02005 | 4 | 18Φ-M18xP1.5 | 11901504 | • Machined aluminum for mounting air return screws |
| INX-02013 | 5 | 6Φ-M18xP1.5 | 11901505 | • Brass Cr plating for air return thread mounting |
| INX-02011 | 6 | 5Φ-M6xP1.0 | 11901506 | • Brass Cr plating for mounting the back side thread |
| INX-02010 | 7 | 6Φ-M6xP1.0 | 11901507 | • Brass Cr plating for mounting the back side thread |
GReddy - Airinx Hose Union Fitting(s) - M5-M18
Sale price$8.00
Regular price (/)
