GREDDY SIRIUS OBD SET (METER TURBO) - (16001755)

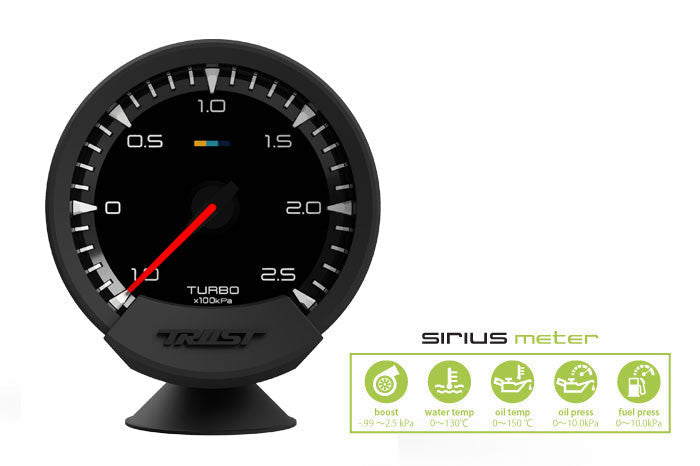

1x 74mm Sirius Analog Turbo Meter (no boost sensor included)
     (Range: -.99 ～2.5 kPa)
1x ISO CAN Communication Harness

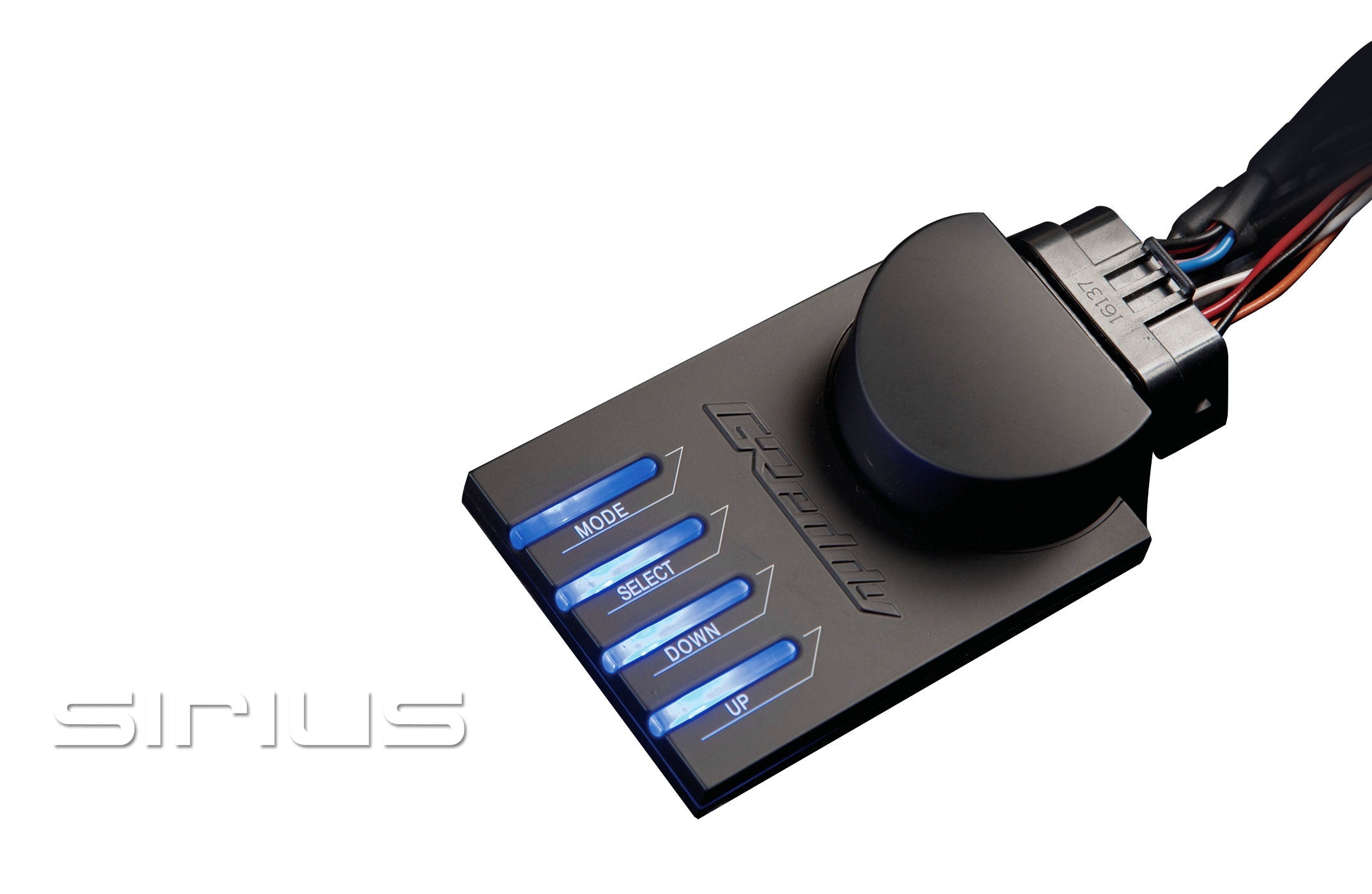

    (Requires Sirius Control Unit sold separately)

 * SIRIUS CONTROL UNIT IS REQUIRED FOR SIRIUS VISION, METER, & UNIFY SETS (with serial number GSI-8000 or higher only)

GReddy SIRIUS OBD

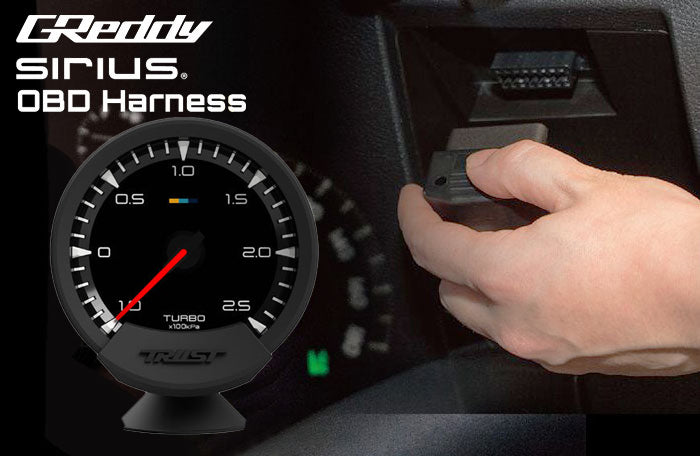

Easily connect GReddy SIRIUS with OBD

SIRIUS optional parts

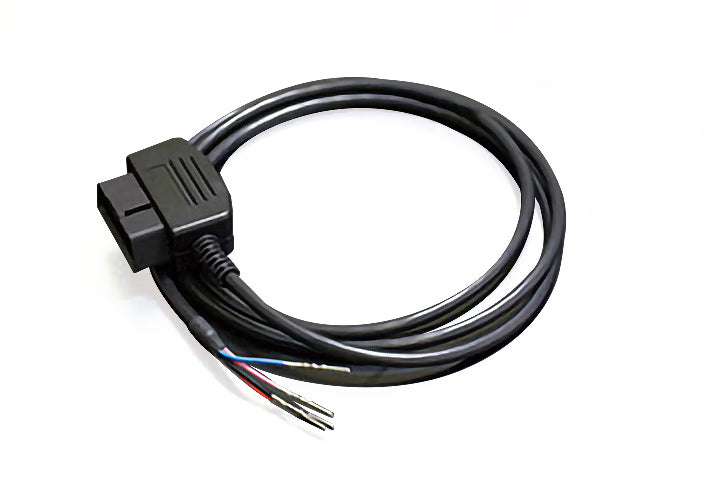

• This is a harness that allows one-touch connection of GReddy SIRIUS to the fault diagnosis connector (OBDⅡ) of ISO CAN communication vehicles. (Compatible car models only)
• When installing Sirius Vision and Unify, you can select from 6 patterns on the display: boost, water temperature, intake temperature, rotation speed, vehicle speed, and voltage.
• For Sirius meter (analog) only boost and water temperature are supported
• If GReddy's boost sensor or water temperature sensor is already connected, the sensor data will take priority.
• Insert the four harness pins into the expansion port of the control unit.

*JDM Page Compatibility Chart (pdf)

NOTE: ** Control Unit, Vision, and Unify whose serial number is earlier than GSI - 8000 require updating. (details to come)
