GReddy Universal Oil Cooler Kit - Basic Std. or Basic Filter Relocation Set-up Kits
GReddy Oil Cooler Kits - Universal engine oil cooler kit with basic hardware: GReddy inner-fin Oil Cooler core, Std. thermostatic Type E oil block, or Type I and Type B/F oil blocks with basic universal lines fittings.
* All kits listed below must use a 3/4-16UNF Oil Filter (GReddy OX-1, OX-3 type)

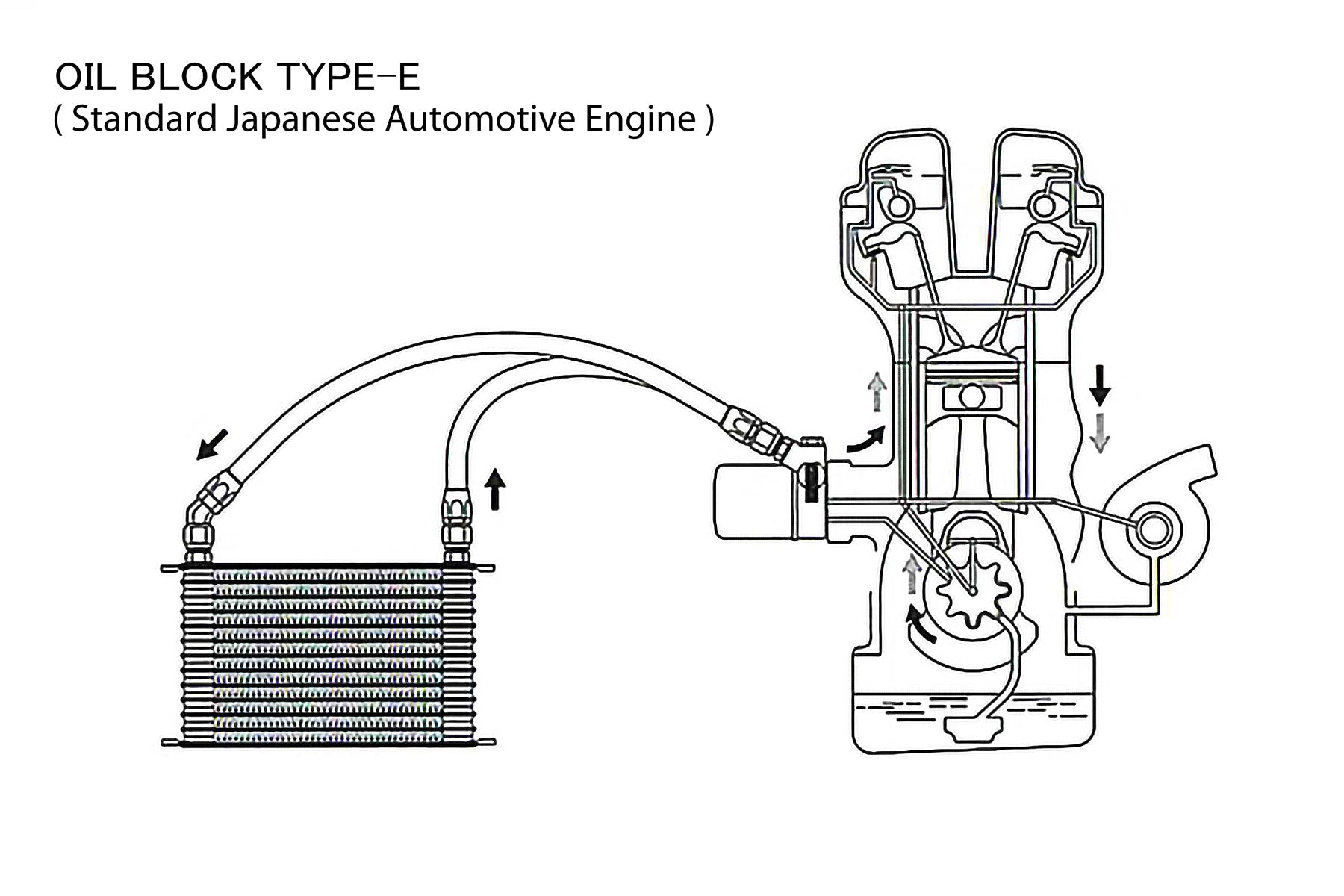

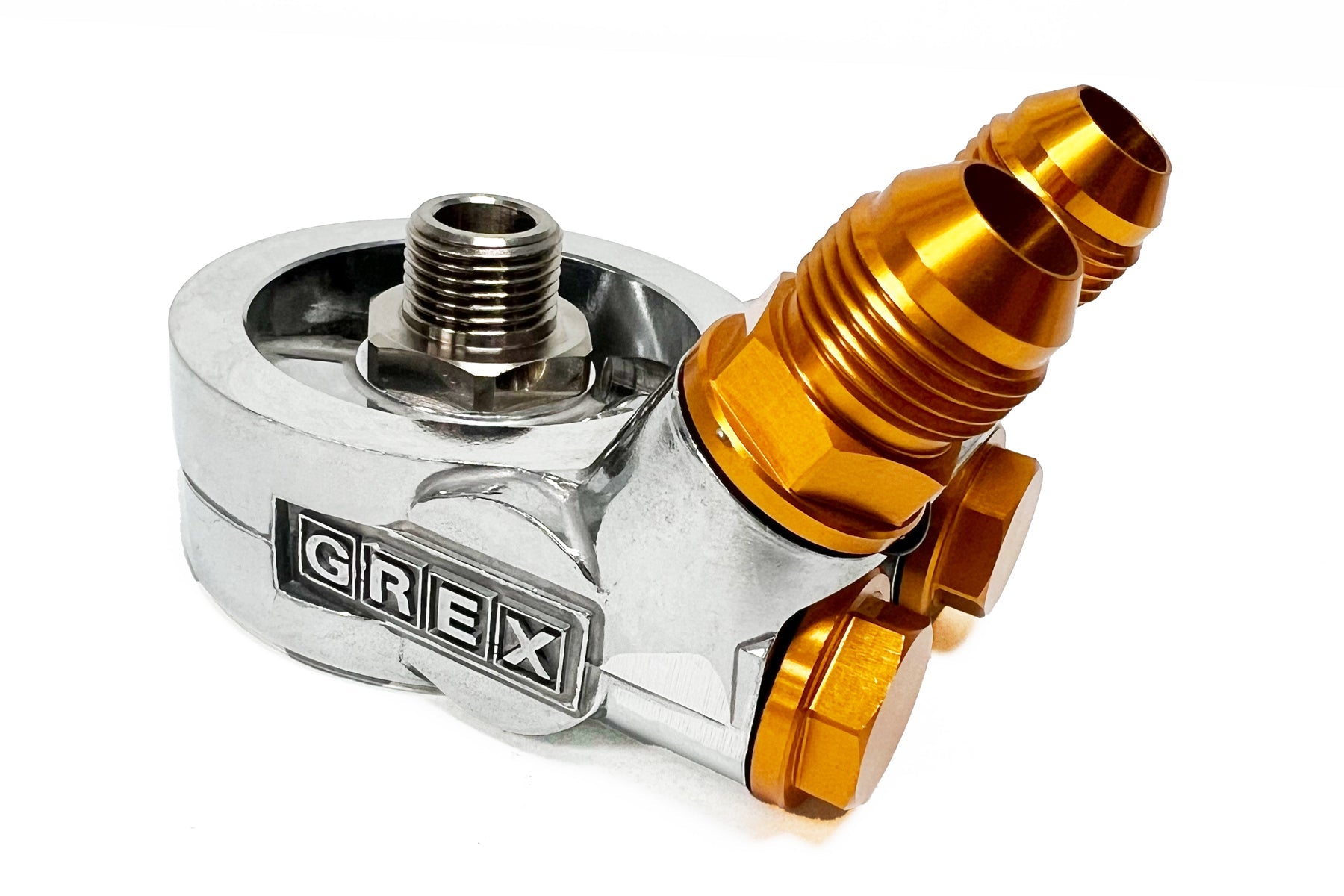

** Optional Std. (Type-E) 12002813 replacement M20xP1.5 - M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)
*** Optional Reloc. (Type-I) 12401182CB replacement M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)
When the temperature inside the engine rises excessively due to sports driving, it adversely affects the oil used for lubrication and cooling, resulting in a decrease in performance and causing engine blows. GReddy oil coolers maintain a stable oil temperature due to high heat dissipation and low pressure drop.
Standard type Universal general-purpose oil cooler kit
includes: AN10: 1x 3m hose, 2x straight fittings, 2x 90° fittings
| Center Bolt Size | O-ring size | Core Type | Number of Cores | Hose Fittings | thermostat | CODE | remarks |
|---|---|---|---|---|---|---|---|
| 3/4-16UNF | 57φ | NS1010G | 10 levels | AN10 | Built-in block | 12004600 | |
| GR1208G | 12 levels | AN8 | Built-in block | 12004618 | |||
| NS1310G | 13 steps | AN10 | Built-in block | 12004602 | |||
| NS1610G | 16 levels | AN10 | Built-in block | 12004603 | |||
| M20×P1.5 | 57φ | NS1010G | 10 levels | AN10 | Built-in block | 12004605 | *1 |
| GR1208G | 12 levels | AN8 | Built-in block | 12004619 | *1 | ||
| NS1310G | 13 steps | AN10 | Built-in block | 12004607 | *1 | ||
| NS1610G | 16 levels | AN10 | Built-in block | 12004608 | *1 |
*1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.
Universal oil cooler kit with filter relocation
includes: AN10: 1x 3m hose, 4x straight fittings, 2x 45°, 2x 90°
| Center Bolt Size | O-ring size | Core Type | Number of Cores | Hose Fittings | thermostat | CODE | remarks |
|---|---|---|---|---|---|---|---|
| 3/4-16UNF | 57φ | NS1010G | 10 levels | AN10 | Built-in block | 12004400 | |
| GR1208G | 12 levels | AN8 | Built-in block | 12004430 | |||
| NS1310G | 13 steps | AN10 | Built-in block | 12004402 | |||
| NS1610G | 16 levels | AN10 | Built-in block | 12004403 | |||
| 62φ | NS1010G | 10 levels | AN10 | Built-in block | 12004410 | ||
| NS1310G | 13 steps | AN10 | Built-in block | 12004411 | |||
| NS1610G | 16 levels | AN10 | Built-in block | 12004412 | |||
| M20×P1.5 | 57φ | NS1010G | 10 levels | AN10 | Built-in block | 12004405 | *1 |
| GR1208G | 12 levels | AN8 | Built-in block | 12004431 | *1 | ||
| NS1310G | 13 steps | AN10 | Built-in block | 12004407 | *1 | ||
| NS1610G | 16 levels | AN10 | Built-in block | 12004408 | *1 | ||
| 62φ | NS1010G | 10 levels | AN10 | Built-in block | 12004414 | *1 | |
| NS1310G | 13 steps | AN10 | Built-in block | 12004415 | *1 | ||
| NS1610G | 16 levels | AN10 | Built-in block | 12004416 | *1 |
*1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.
