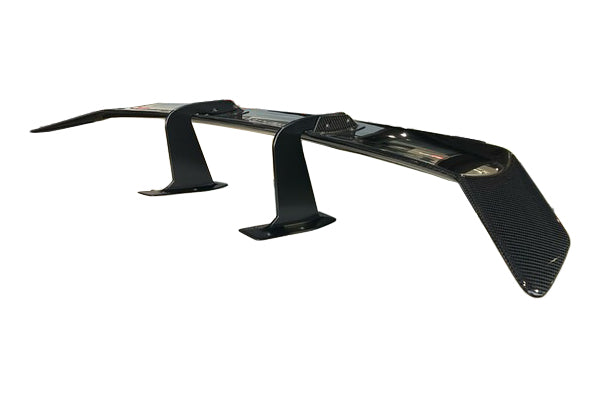

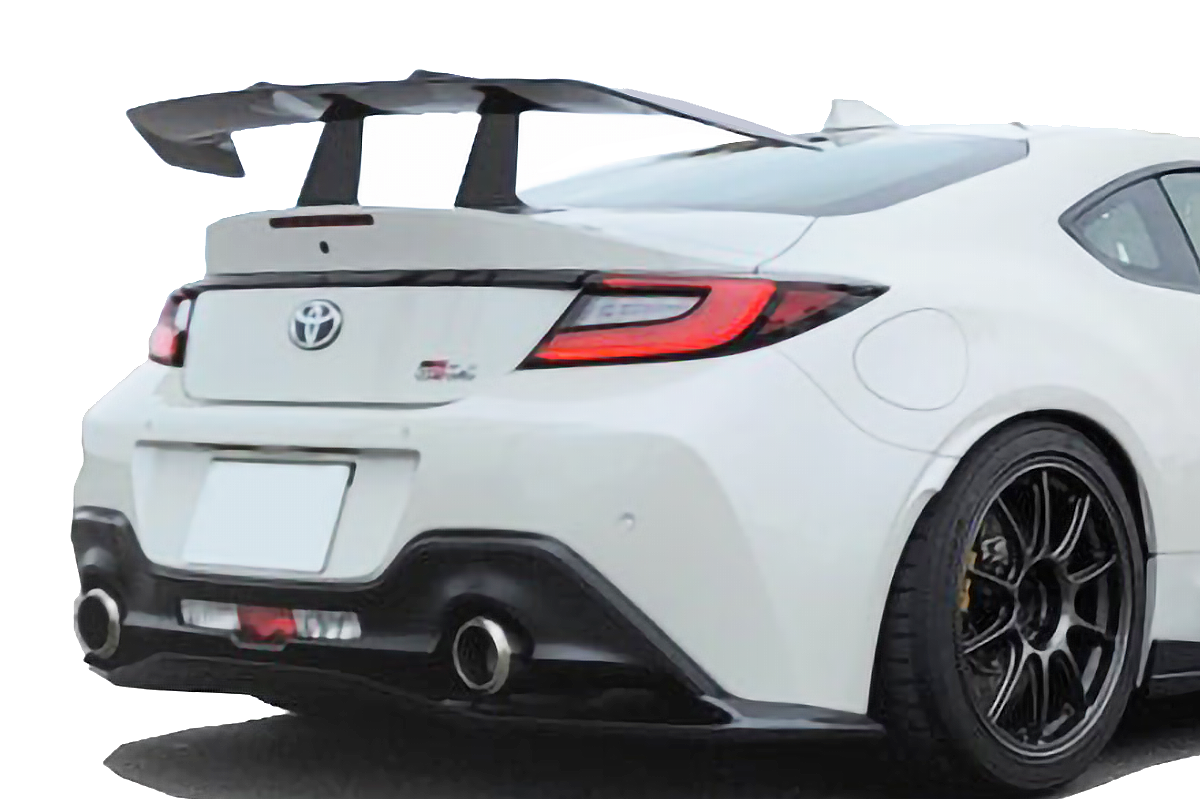

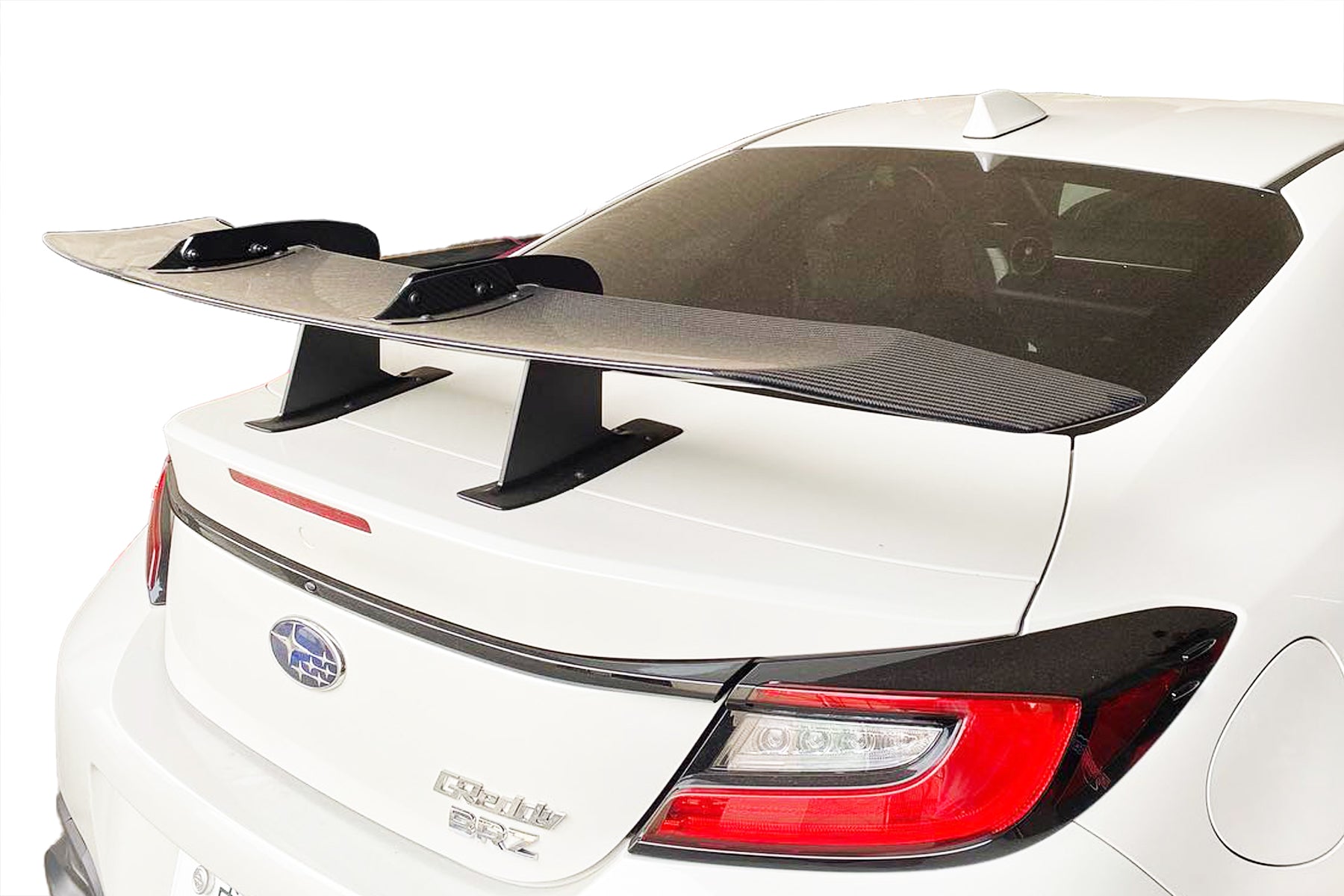

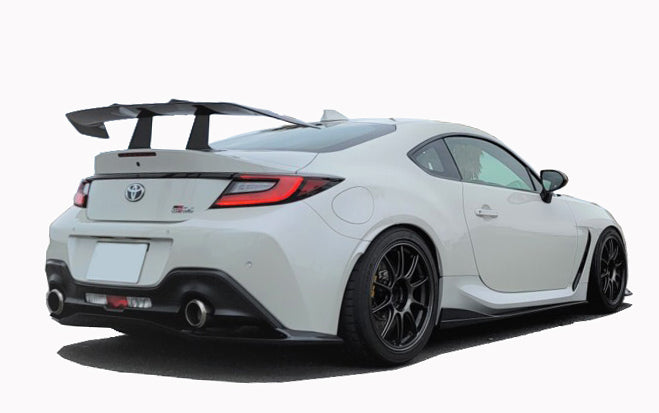

GREDDY X VOLTEX AERO KIT GR86/BRZ (ZN8/ZD8) CARBON REAR WING SWAN NECK CFRP - (17510239)
GReddy × VOLTEX GR86/BRZ Aero Kit - Carbon center-mounted swan-neck GT Wing
Highly functional and high quality aero kit created by collaboration of “GReddy x VOLTEX”
Product features
◆This is a high-performance, high-quality aero kit for street and light circuits created in collaboration with GReddy x VOLTEX.
◆The design is simple, yet textured and fearless, with the aim of securing an appropriate amount of downforce.
◆Wing angle can be adjusted in 3 levels.
◆All items are painted. Wet carbon products have [clear coating], and FRP products have [matte black coating].
Normal body ratio reduction amount and wing height (approx.)
front | side | rear | wing height | |||||
tip | Rear end | tip | Rear end | side mount | center mount | swan neck | ||
GR86 (ZN8) | 35mm | 18mm | 15mm | 35mm | 60mm | 113mm | 180mm | 180mm |
BRZ (ZD8) | 40mm | 28mm | 15mm | 35mm | 60mm | 113mm | 180mm | 180mm |
![](https://www.trust-power.com/wp-content/uploads/2021/12/voltex-earo-size_23.02.07.jpg)
◆Front under spoiler, side under panel, and rear under spoiler are made of wet carbon (twill weave) and FRP.The
main body of the rear wing is made of wet carbon (twill weave), and there are three types: side mount, center mount, and swan neck. there is.
◆Wet carbon products are clear coated, FRP products are matte black painted.
◆Drilling is required for installation.
[Standard installation time] Front approximately 1 hour 30 minutes, Side approximately 2 hours, Rear approximately 1 hour 30 minutes,
Wing (Side M) approximately 1 hour, Wing (Center M) approximately 2 hours 30 minutes, Wing (Swan neck) approximately 2 hours 30 minutes
[Compatible models] Toyota GR86 / Subaru BRZ
Compatible model: ZN8 /
ZD8 Year : 2021.10~ / 2021.8~
17010239 | GReddy × VOLTEX Aero Kit Rear Wing Swan Neck [86WW] | W.C. |
---|
