HOSE UNION NO.6 5MM-6MM VACUUM TUBE - (11900644)

Sale price$9.00

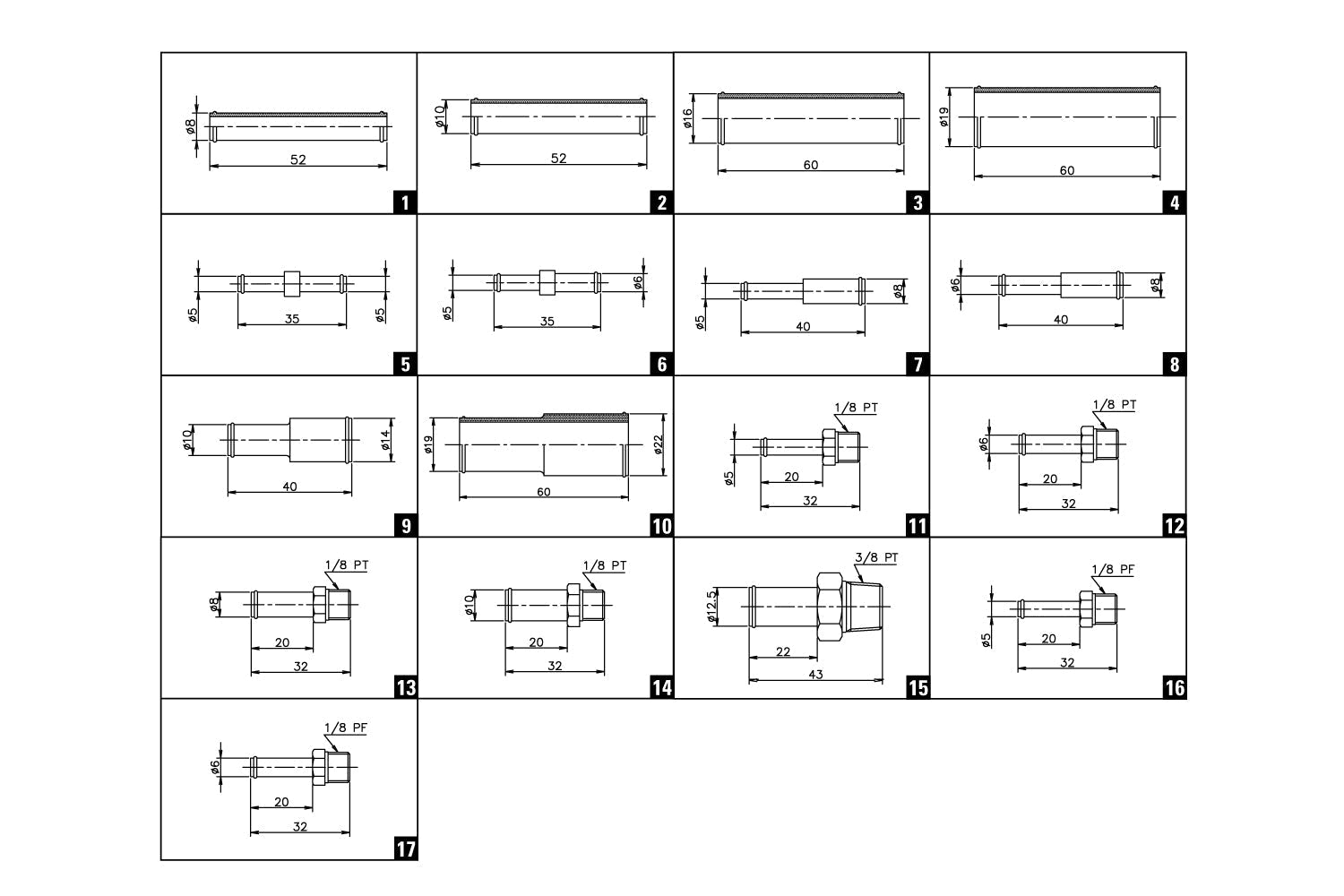

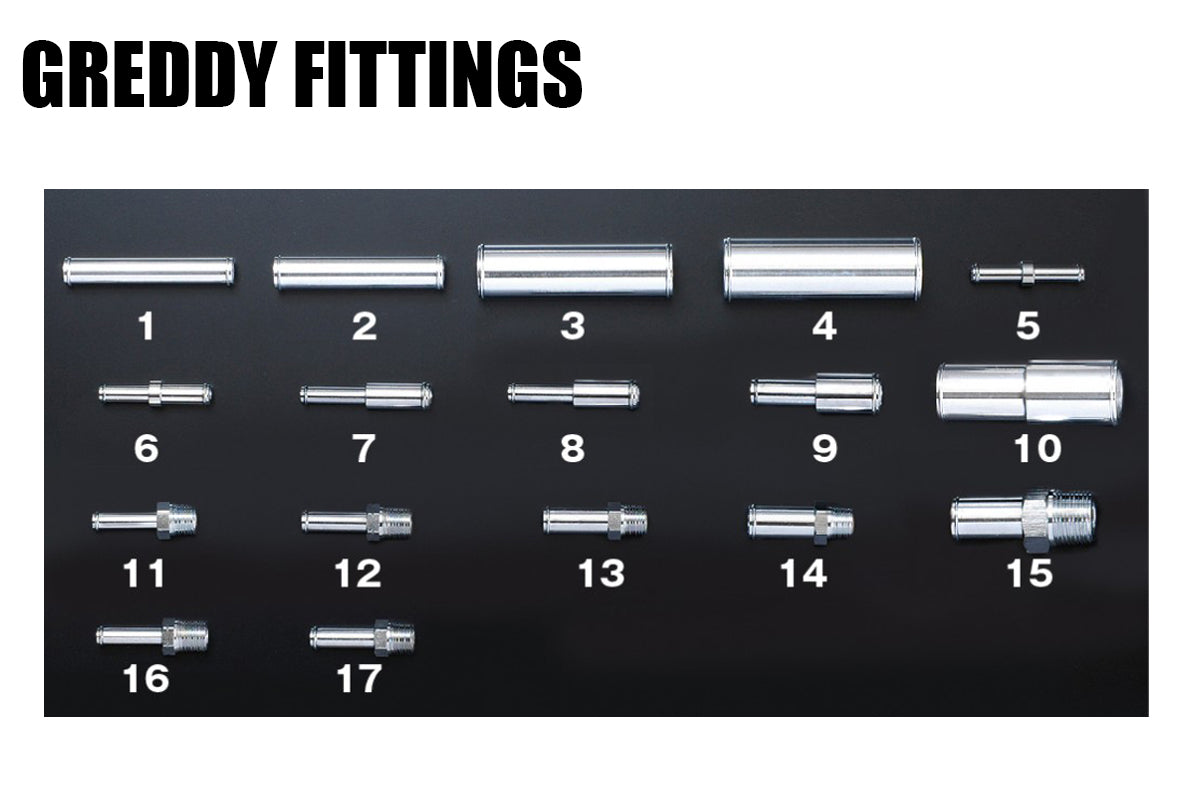

Fig. #6

size shape specification CODE  remarks
8φ bypass tube 1   11900630 Machined aluminum
10φ bypass tube 2   11900631 Machined aluminum
16φ bypass tube 3   11900632 Machined aluminum
19φ bypass tube 4   11900633 Machined aluminum
5φ-5φ 5   11900640 Brass Cr plated
5φ-6φ 6   11900644 Brass Cr plated
5φ-8φ 7   11900641 Brass Cr plated
6φ-8φ 8   11900649 Brass Cr plated
10φ-14φ 9   11900634 Brass Cr plated
19φ-22φ 10   11900635 Machined aluminum
5φ-1/8PT 11   11900645 Brass Cr plated
6φ-1/8PT 12   11900648 Brass Cr plated
8φ-1/8PT 13   11900651 Brass Cr plated
10φ-1/8PT 14   11900653 Brass Cr plated
12.5φ-3/8PT 15   11900636 Brass Cr plated
5φ-1/8PF 16 For air pressure hose 11900637 Brass Cr plated
6φ-1/8PF 17 For air pressure hose 11900638 Brass Cr plated
