UNIVERSAL GREDDY OIL COOLER KIT STD - (1200460X)
Standard type Universal general-purpose oil cooler kit
* All kits listed below must use a 3/4-16UNF Oil Filter (GReddy OX-1, OX-3 type)

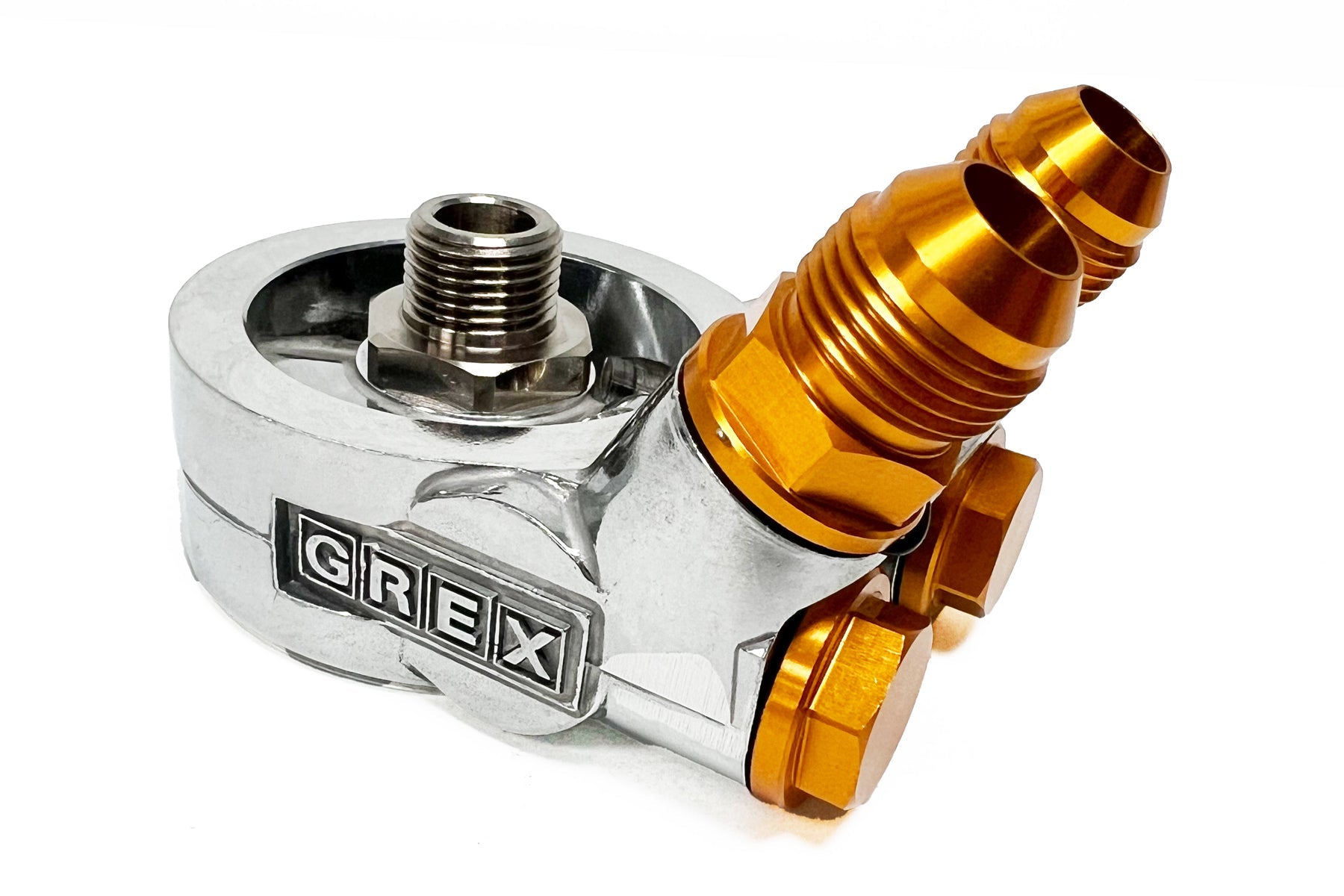

** Optional Std. (Type-E) 12002813 replacement M20xP1.5 - M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)

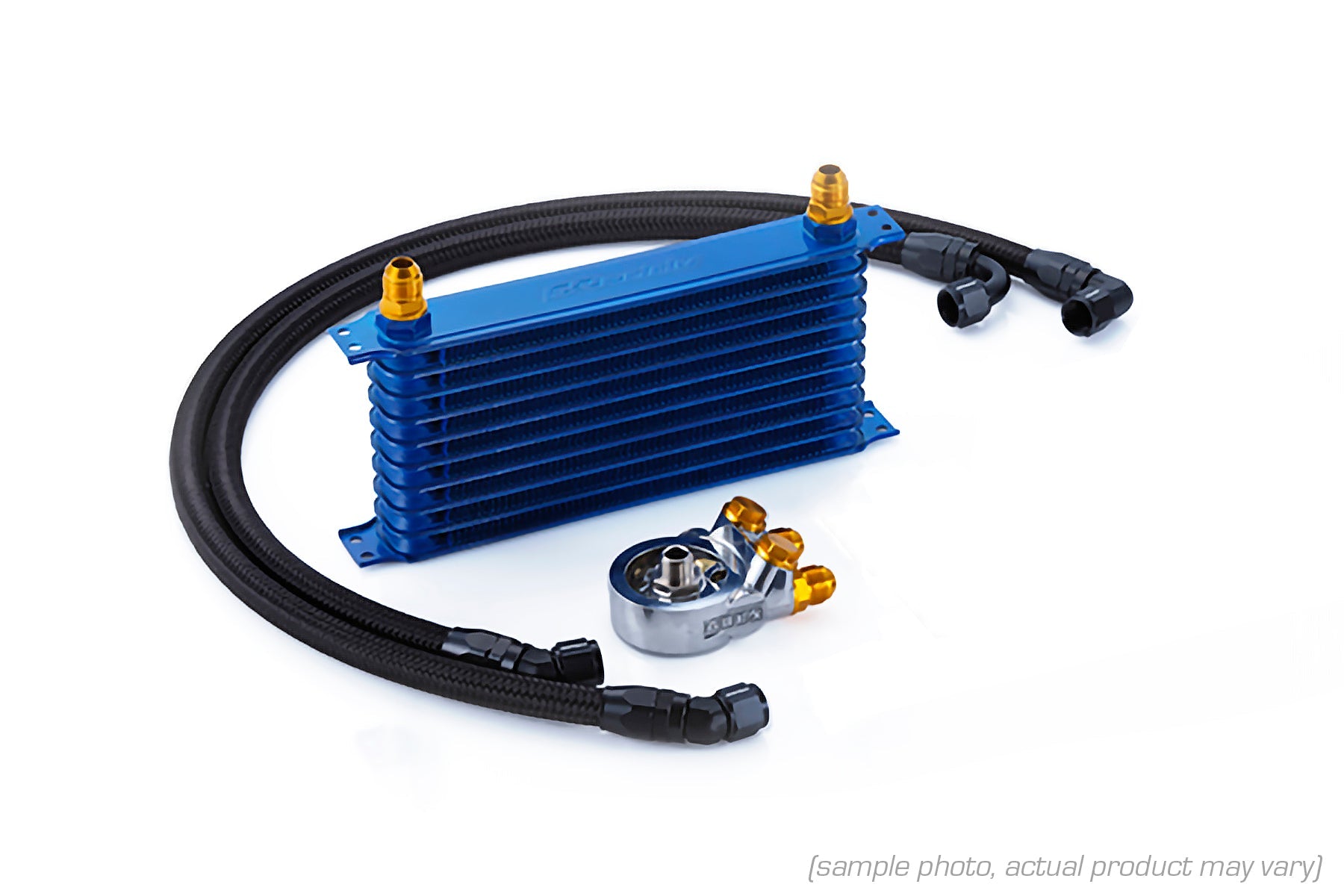

includes: AN10: 1x 3m hose, 2x straight fittings, 2x 90° fittings
| Center Bolt Size | O-ring size | Core Type | Number of Cores | Hose Fittings | thermostat | CODE | remarks |
|---|---|---|---|---|---|---|---|
| 3/4-16UNF | 57φ | NS1010G | 10 levels | AN10 | Built-in block | 12004600 | |
| GR1208G | 12 levels | AN8 | Built-in block | 12004618 | |||
| NS1310G | 13 steps | AN10 | Built-in block | 12004602 | |||
| NS1610G | 16 levels | AN10 | Built-in block | 12004603 | |||
| M20×P1.5 | 57φ | NS1010G | 10 levels | AN10 | Built-in block | 12004605 | *1 |
| GR1208G | 12 levels | AN8 | Built-in block | 12004619 | *1 | ||
| NS1310G | 13 steps | AN10 | Built-in block | 12004607 | *1 | ||
| NS1610G | 16 levels | AN10 | Built-in block | 12004608 | *1 |
*1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.
UNIVERSAL GREDDY OIL COOLER KIT STD - (1200460X)
Sale price$690.00
Regular price$0.00 (/)
