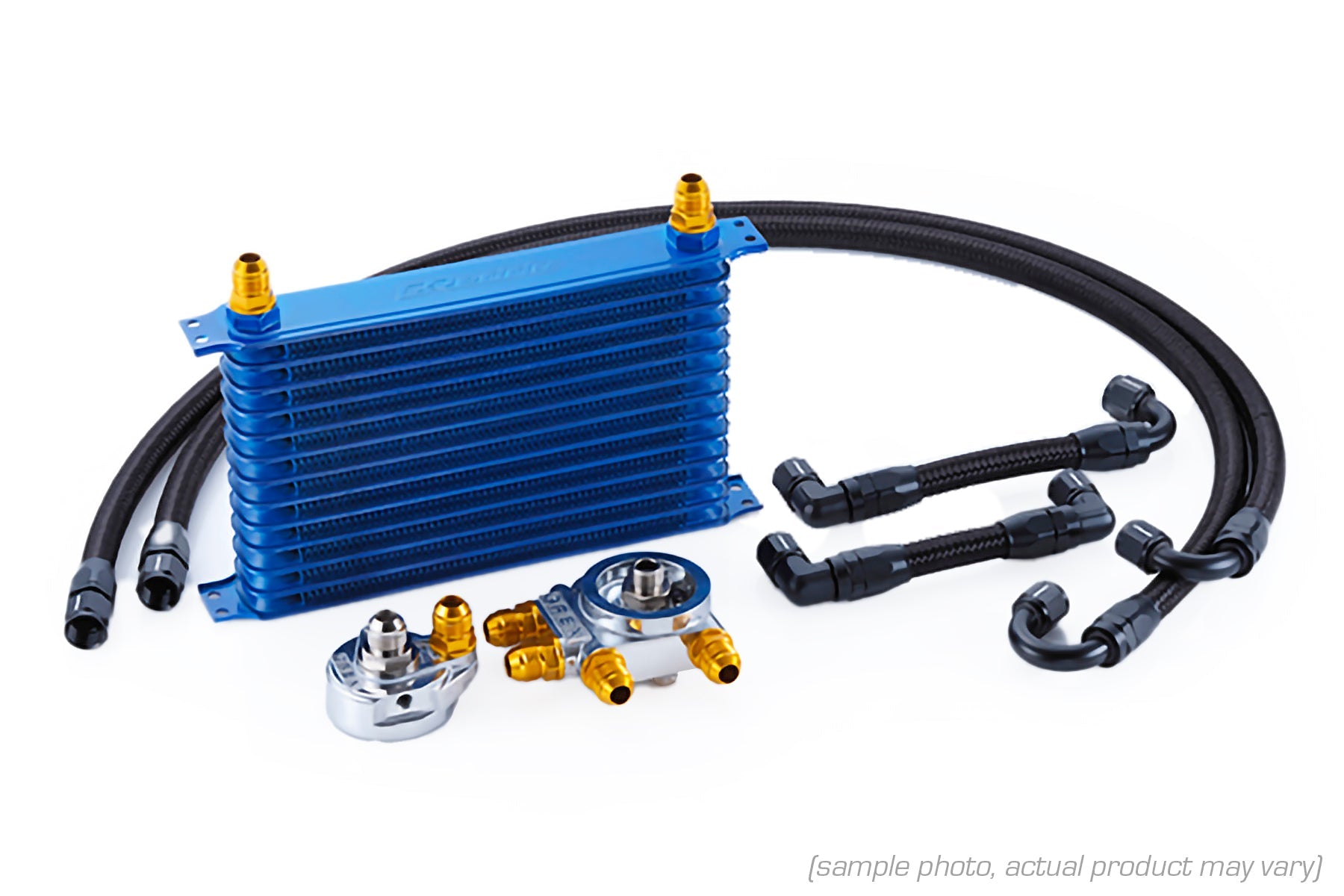

OIL COOLER KIT W/ FILTER RELOCATION JZS161 13-ROW - (12014415)

Oil cooler kit moving 13row for JZS161

Product Features

• An ideal oil cooler that uses a large-capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
• A type of kit that can be installed on cars that do not have clearance near the oil filter.
• By moving the element, it is easier to replace the oil filter and improve maintenance.

Product Specifications

• Core type: NS1310G
• Thermostat: Built-in block
• Core installation position: In front of radiator
• Element installation location: Next to left transmission
• Center bolt size: 3/4-16UNF

Compatible models: TOYOTA Aristo

• Vehicle model: JZS161
• E/G model: 2JZ-GTE
• Year: 97.08-04.11
• CODE:12014415

Remarks

• GReddy I/C KIT cannot be installed at the same time
• Fender liner processing required
