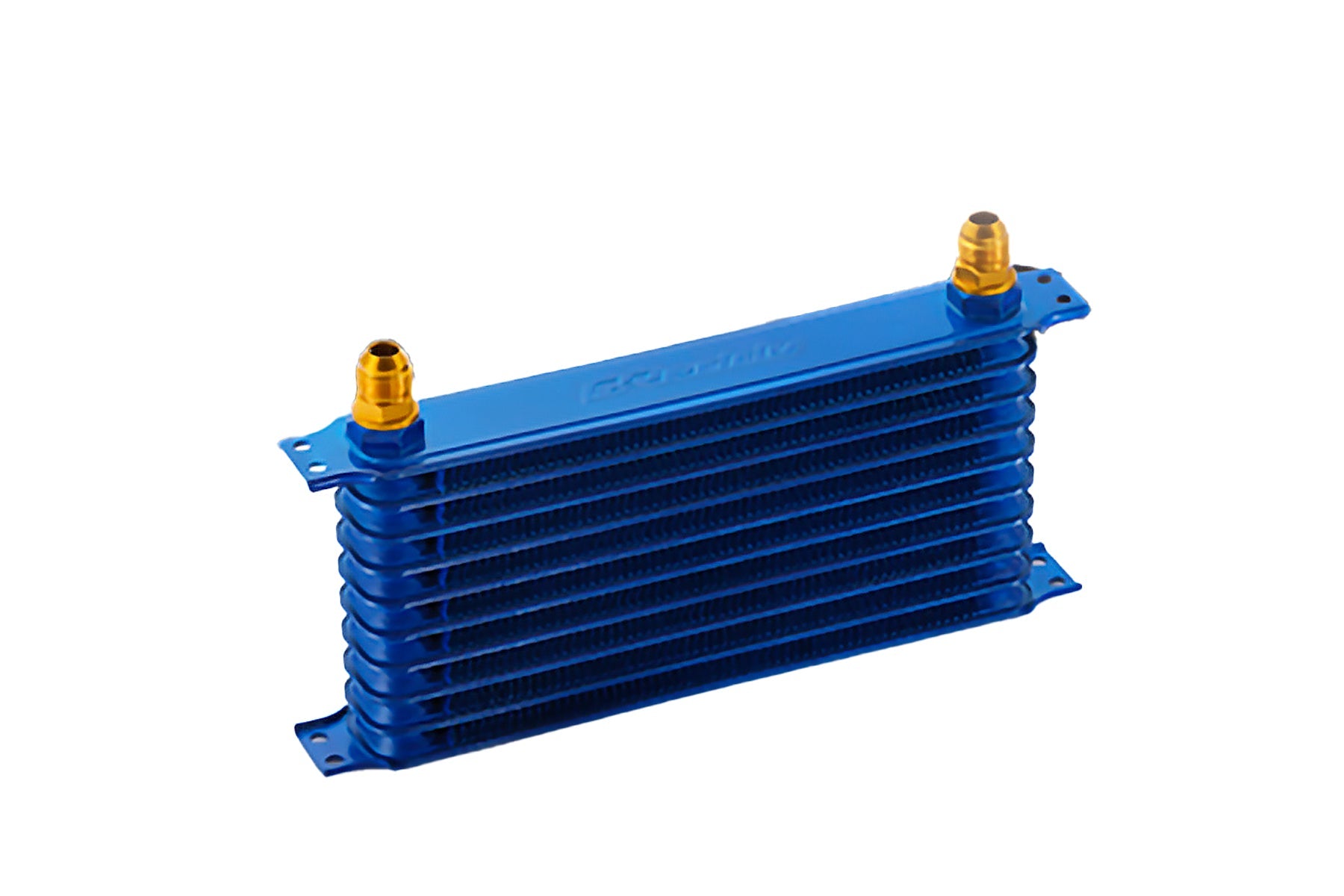

UNIVERSAL GREDDY OIL COOLER KIT W/ FILTER RELOC. - (120044XX)


Universal oil cooler kit with filter relocation

   includes:  AN10: 1x 3m hose, 4x straight fittings, 2x 45°, 2x 90°

* All kits listed below must use a 3/4-16UNF Oil Filter (GReddy OX-1, OX-3 type)
** Optional Reloc. (Type-I) 12401182CB replacement M20xP1.5 Centerbolt sold separately - to allow you to keep use of a M20xP1.5 Oil Filter (GReddy OX-4, OX-5 type)

Center Bolt Size O-ring size Core Type Number of Cores Hose Fittings thermostat CODE remarks
3/4-16UNF 57φ NS1010G 10 levels AN10 Built-in block 12004400
GR1208G 12 levels AN8 Built-in block 12004430
NS1310G 13 steps AN10 Built-in block 12004402
NS1610G 16 levels AN10 Built-in block 12004403
62φ NS1010G 10 levels AN10 Built-in block 12004410
NS1310G 13 steps AN10 Built-in block 12004411
NS1610G 16 levels AN10 Built-in block 12004412
M20×P1.5 57φ NS1010G 10 levels AN10 Built-in block 12004405 *1
GR1208G 12 levels AN8 Built-in block 12004431 *1
NS1310G 13 steps AN10 Built-in block 12004407 *1
NS1610G 16 levels AN10 Built-in block 12004408 *1
62φ NS1010G 10 levels AN10 Built-in block 12004414 *1
NS1310G 13 steps AN10 Built-in block 12004415 *1
NS1610G 16 levels AN10 Built-in block 12004416 *1

*1 Engines with center bolts M20 x P1.5 require an oil filter with center bolt size 3/4-16UNF.
