GR86/86/FRS/BRZ OIL FILTER BLOCK SENSOR ADAPTER (OIL PRESS./TEMP.) - (12002802)

Sale price$150.00



12002802 - Sensor attachment high mount type M20xP1.5

Ideal to mount  1/8 BSP (JDM 1/8PT) Temperature and Pressure Sensors on FA20 / 4U-GSE engines commonly found on Scion FR-S,  Toyota 86, and Subaru BRZ.

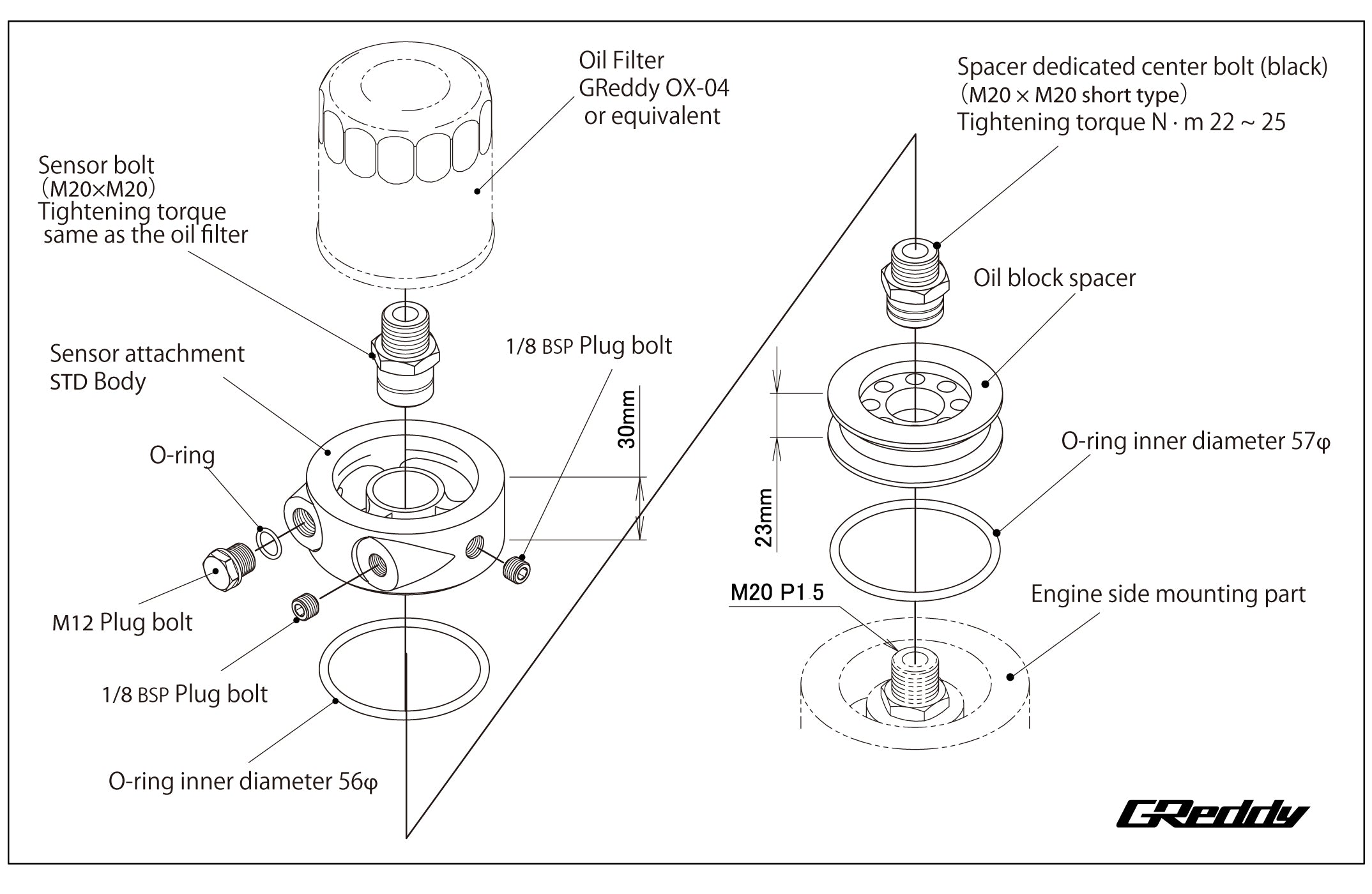

  Oil Block includes one extension adapter, and M20xP1.5 center bolt

  Also included are two common O-ring sizes:  I.D. #5- 56mm & #6- 65mm

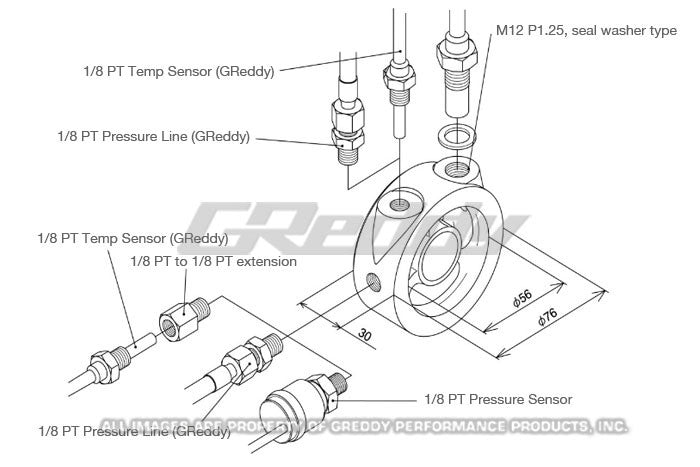

  Sensor ports: 2x 1/8BSP (JDM 1/8PT) for pressure and temperature, 1x  M12xP1.25 washer seal type.

 * also see GReddy OX-4 Sport Oil Filter p/n 13901104  (sold separately).

* also see GReddy Sport Oil Filters (sold separately)
