RS-TI UNIVERSAL OVAL MUFFLER 3.0"- 105MM TIP - (11003530)

11003525 - Universal 2.5" Inlet Titanium Oval Muffler and 105mm RS Titanium Tip
11003530 - Universal 3" Inlet Titanium Oval Muffler and 105mm RS Titanium Tip

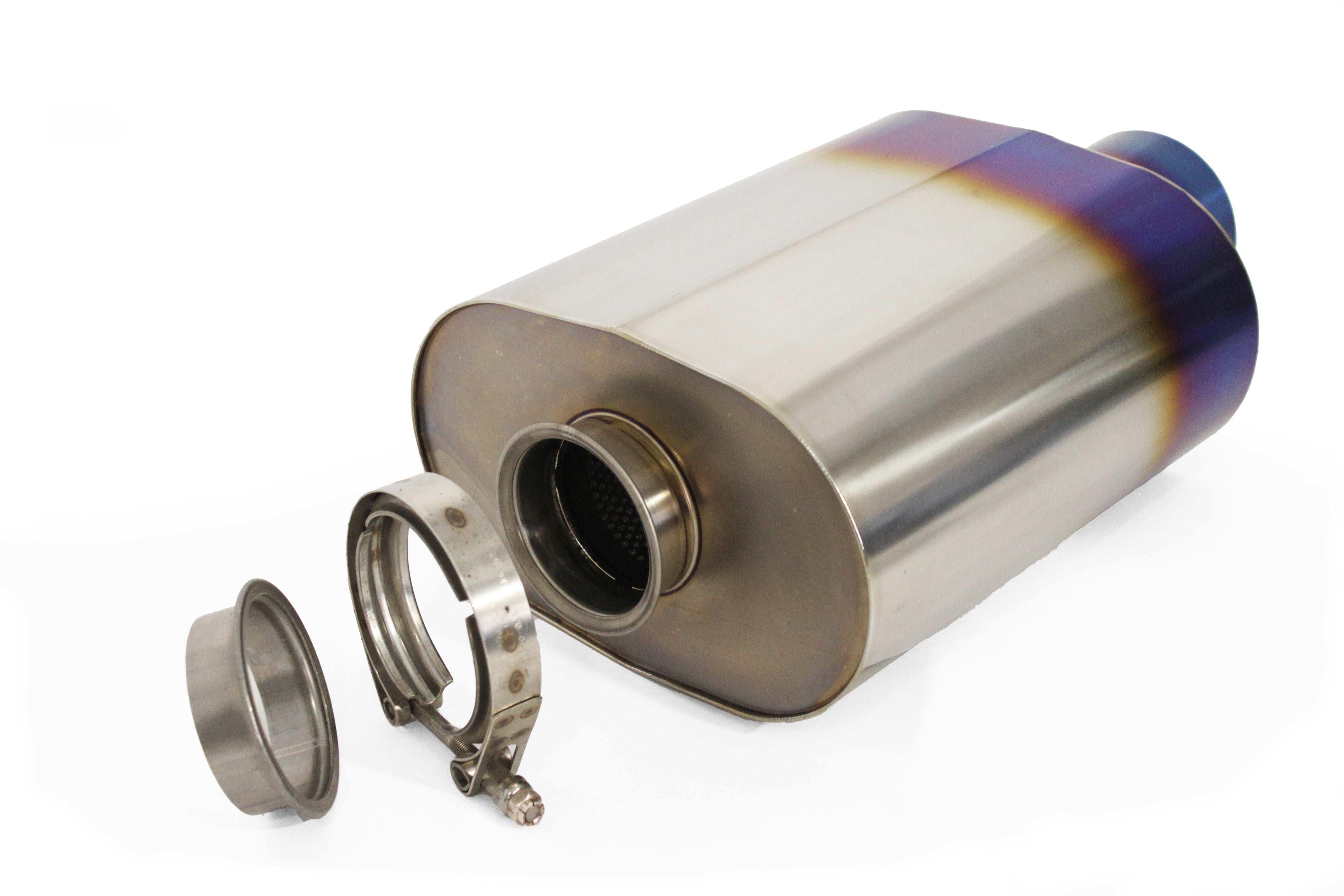

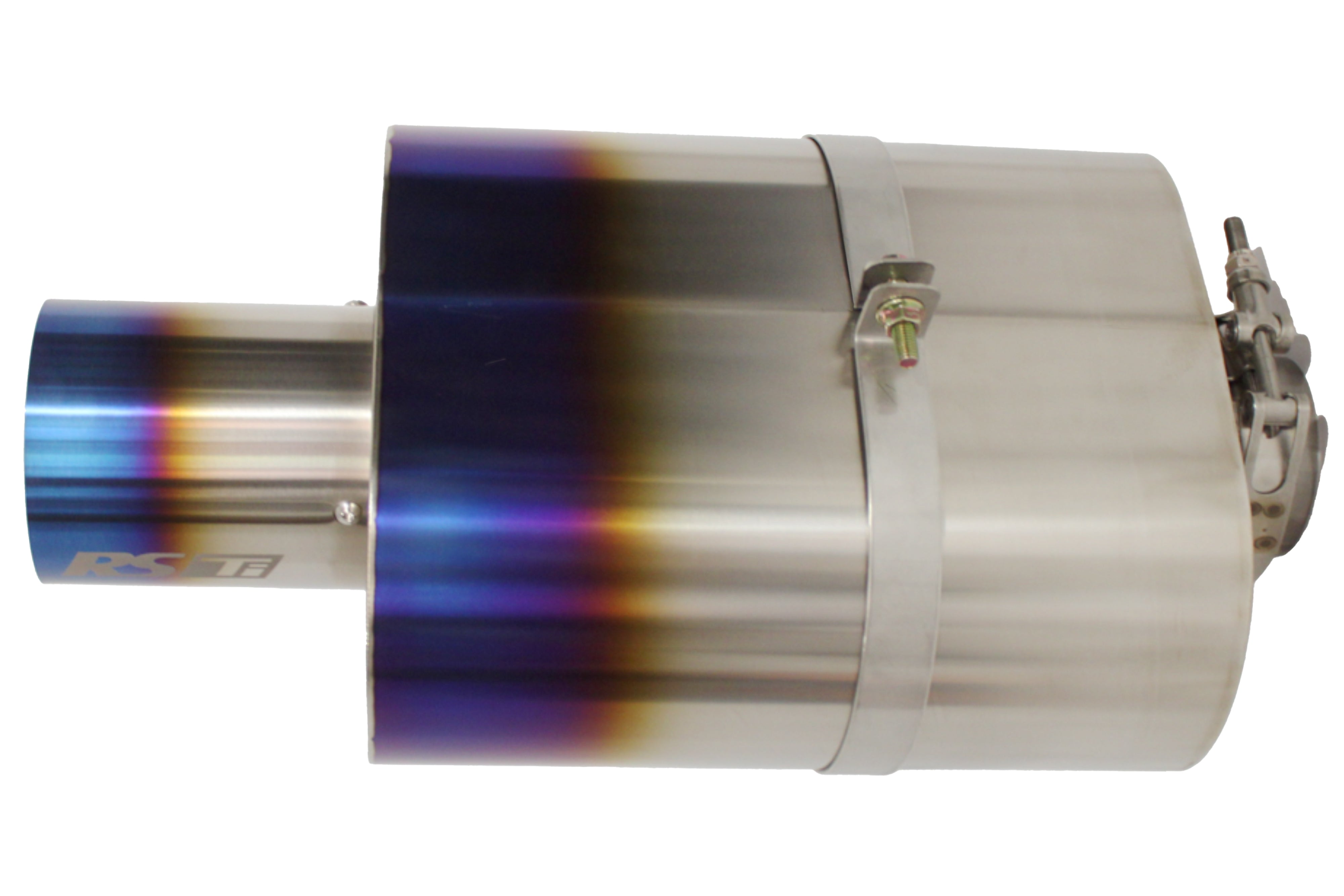

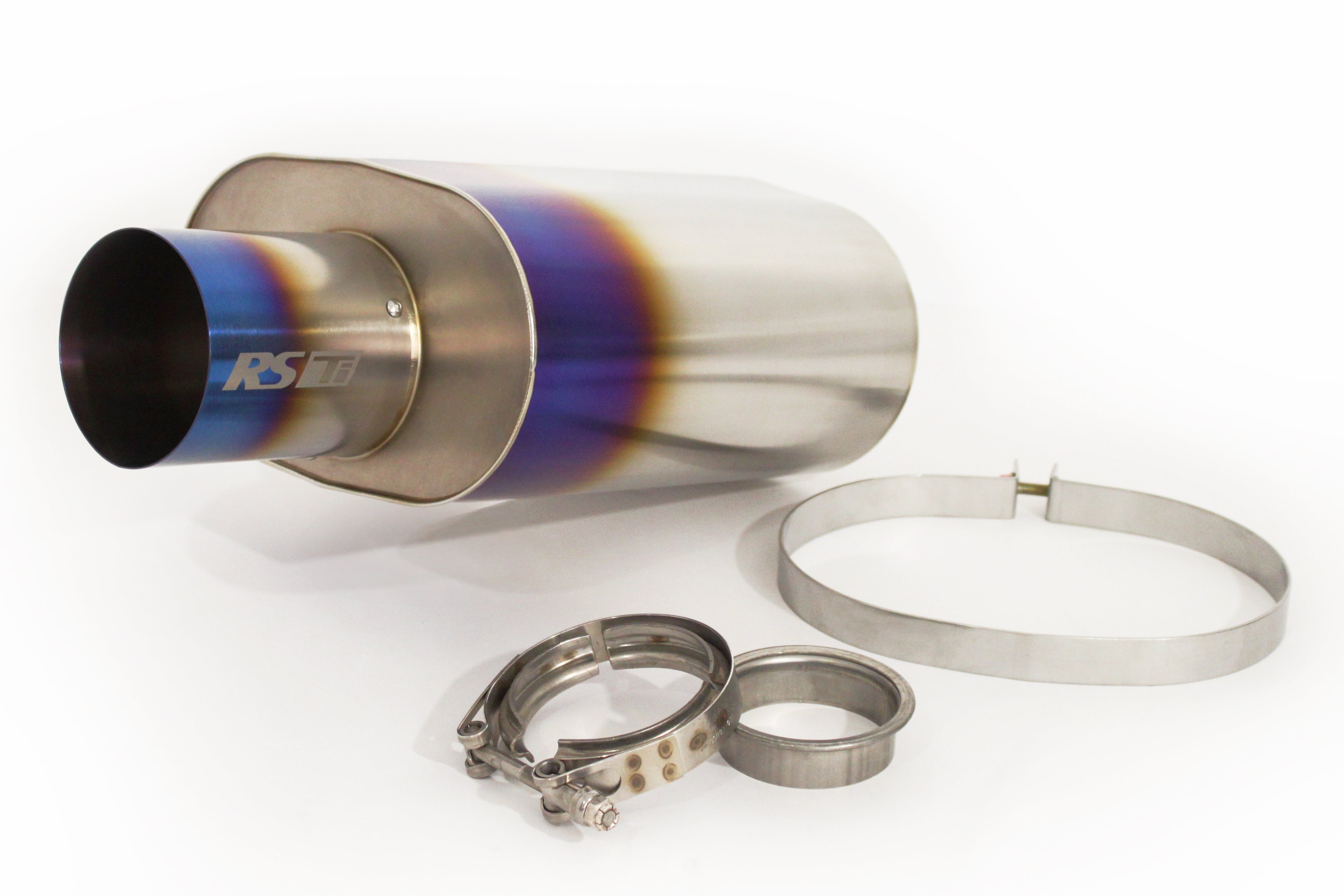

GPP Universal RS-Ti Titanium Muffler and Tip sets create new lightweight options for creating your own custom full Ti or hybrid Ti/steel exhaust system. In addition to the Titanium Oval Muffler canister and tip, each kit includes a stainless-steel oval muffler mounting-band (to weld on mounting hangers), pre-welded titanium inlet pipe and V-band flange, as well as a matching stainless-steel V-band flange and clamp (to adapt the kit to steel piping.) The kits are available in a 3.0” (76mm) and 2.5” (63.5mm) piping sizes. Our signature high quality, straight-through, universal muffler design offers exceptional flow with a clean, optimized exhaust note. And with the 105mm RS Tri-bolt removable Tip, optional 105mm RS inner tip silencers and tips can be purchased separately for even more customization.

No Titanium Welding Necessary!

With the included pre-welded Titanium V-band flange and additional stainless-steel flange and stainless steel oval muffler canister mounting bracket, you do not have to be able to weld Titanium to have a custom Titanium muffler, exhaust system. Just weld onto the provided flange and canister mounting bracket.

3.0" Dia. inlet Universal Oval Titanium Muffler and 105mm Tip set

Muffler Type: W260 x H160 x L300mm Oval Titanium (10.2"x6.3"x11.8")
Type: Straight-through
Inlet : Centered 76mm (3") V-band flange
Outlet : Center, Offset 20mm down 103mm (4") RS 3-bolt
Surface: brunt-Titanium brushed finish

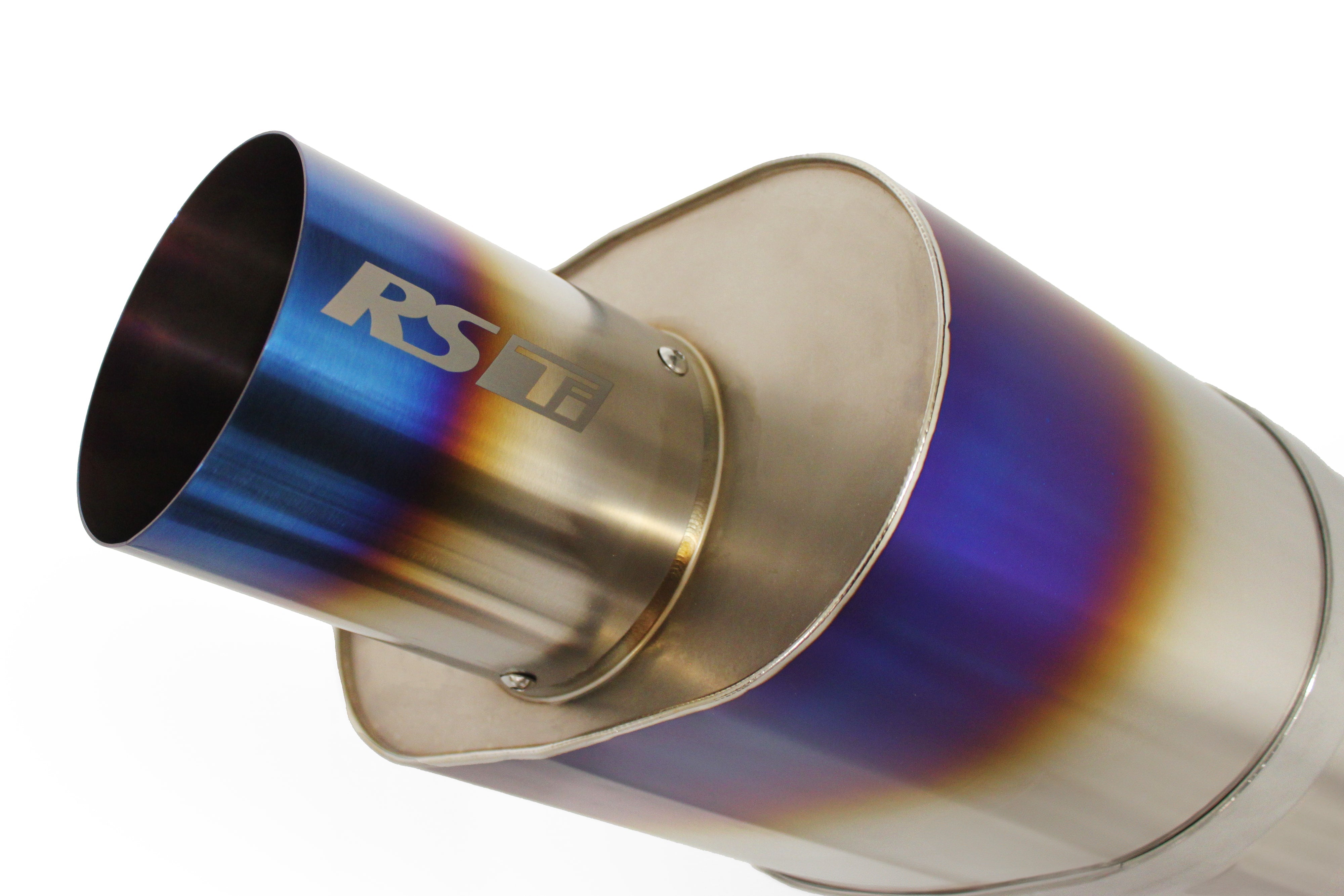

Tip Type: Removable Single-wall Titanium with RS-Ti Logo with Tri-bolt mounting
Dia.: 105mm (4.1")
Length: 120mm (4.7")
Surface: brunt-Titanium brushed finish, with laser-etched RS-Ti logo

Piping Extension: L33mm (1.3")
+ 3.0" piping at the back of the muffler, with a pre-welded 3.0" V-band Titanium flange

Additional Mounting Hardware included:
+ additional un-welded stainless-steel 3.0" V-band flange with extension piping.
(to adapt to steel or stainless-steel piping)
+ one stainless steel V-band flange

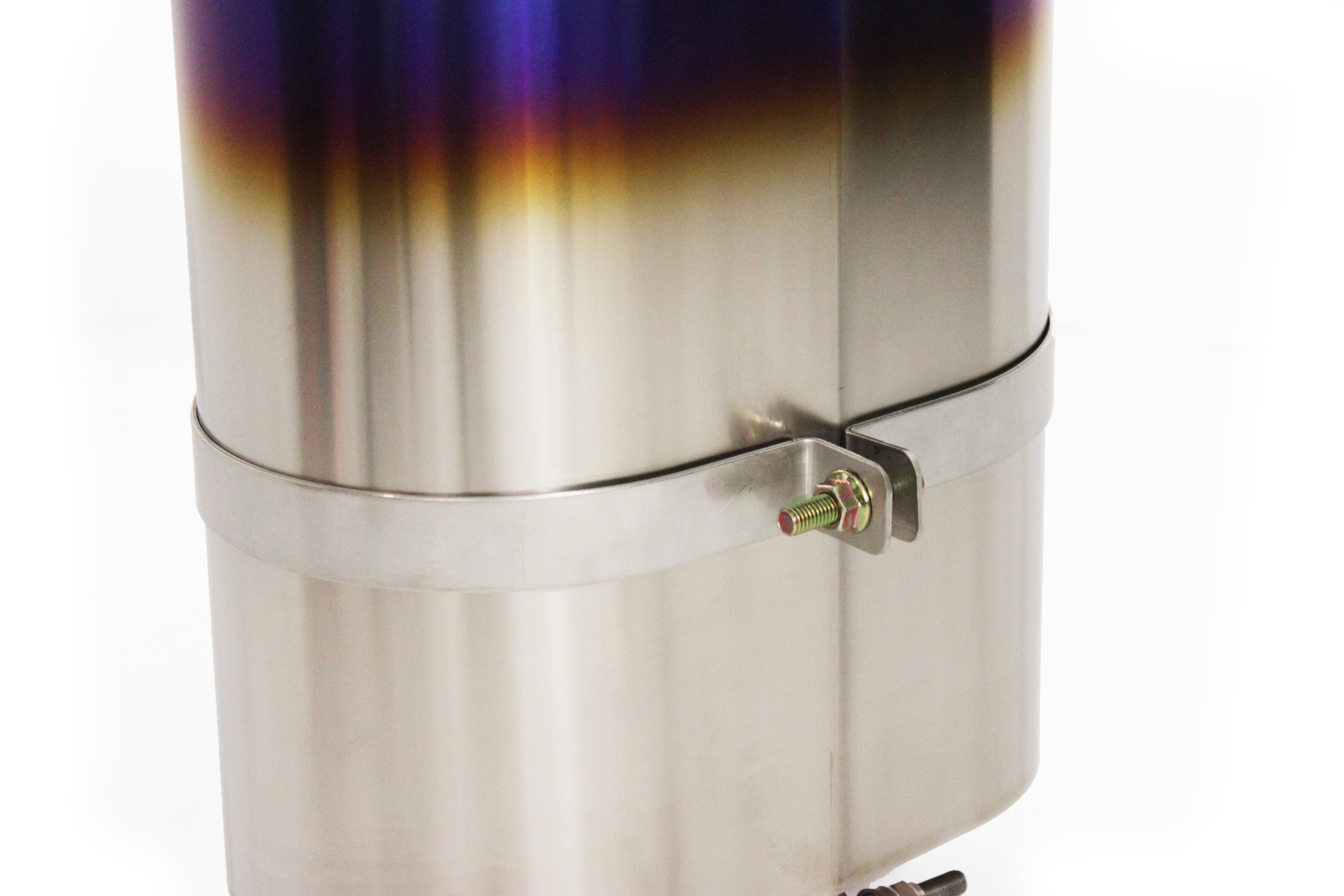

+ a stainless-steel oval muffler canister mounting band.
(to weld on steel or stainless-steel muffler mounting hangers)


Notes:
requires welding (and cutting) for mounting and attaching piping

** Compatible with optional 105mm Revolution RS Tips and Silencers
